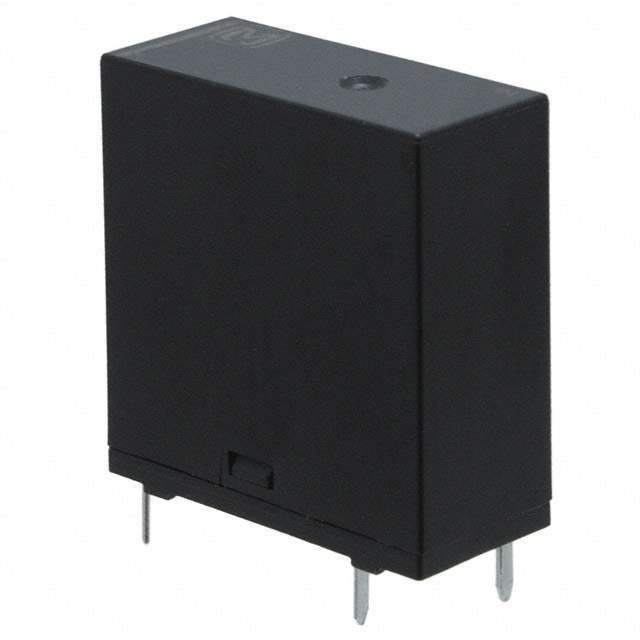

LKT1AF-12V Real Image
Same model may have multiple batches, images only for reference.

LKT1AF-12V

Part No LKT1AF-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 20.8mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 250 mW
Coil Resistance 576 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 206272-LKT1AF-12V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian LKT1AF-12V CAD Model

Description

The LKT1AF-12V is a general-purpose relay manufactured by Panasonic Electric Works.

  • Coil Voltage: 12VDC
  • Contact Rating: 5A
  • Protection: Sealed flux protection
  • Contact Form: SPST-NO
  • Mounting: Through-hole
  • Coil Resistance: 576Ω
  • Operate Time: 15ms
  • Release Time: 5ms
  • Package Quantity: 100 relays
