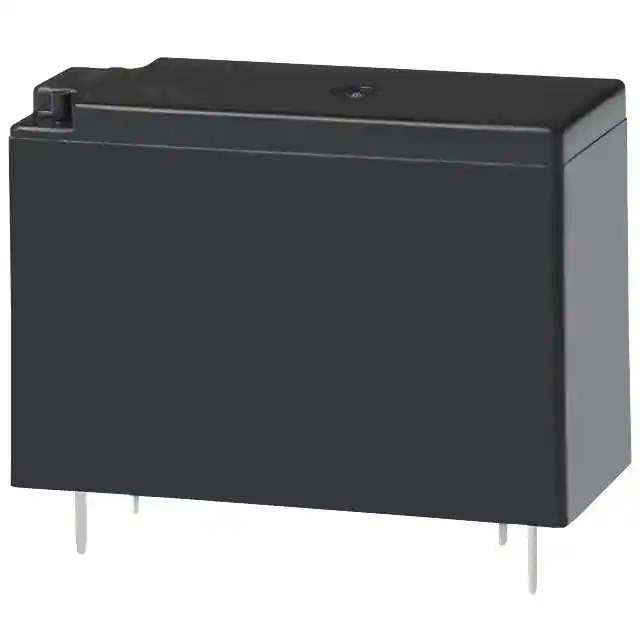

JW1AHN-DC5V-F Real Image
Same model may have multiple batches, images only for reference.

JW1AHN-DC5V-F

Part No JW1AHN-DC5V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 106 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class E
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 47 Ohms
Base Product Number JW1AHN
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 609094-JW1AHN-DC5V-F
Ultra Librarian 3D Model Ultra Librarian JW1AHN-DC5V-F CAD Model

Description

The Panasonic JW series power relay is a reliable component for various applications.

  • Contact Rating: 5A
  • Coil Voltage: 5VDC
  • Relay: JW1AHN-DC5V-F
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Protection: Sealed
  • Operate Time: 15ms
  • Release Time: 5ms
  • Temperature Range: -40°C to 60°C
  • Series: JW
  • Manufacturer: Panasonic
