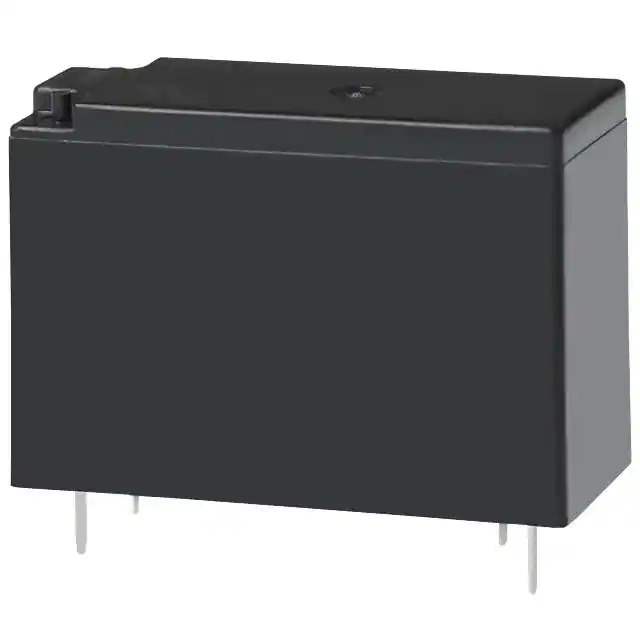

JW1AFSN-DC12V

Part No JW1AFSN-DC12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Datasheet
JW1AFSN-DC12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Tray
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 44 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Alloy
Relay Type General Purpose
Coil Resistance 270 Ohms
Base Product Number JW1AFSN
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 876247-JW1AFSN-DC12V
Ultra Librarian 3D Model Ultra Librarian JW1AFSN-DC12V CAD Model

Description

The 876247-JW1AFSN-DC12V is a power relay from Panasonic's JW series.

  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 12VDC
  • Contact Rating: 10A
  • Switching Voltage: 250VAC, 30VDC
  • Coil Resistance: 270 Ohms
  • Coil Current: 44mA
  • Operate Time: 15ms
  • Release Time: 5ms
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 60°C
  • Application: General Purpose
  • Status: Obsolete
  • Standard Package: 100 pieces
