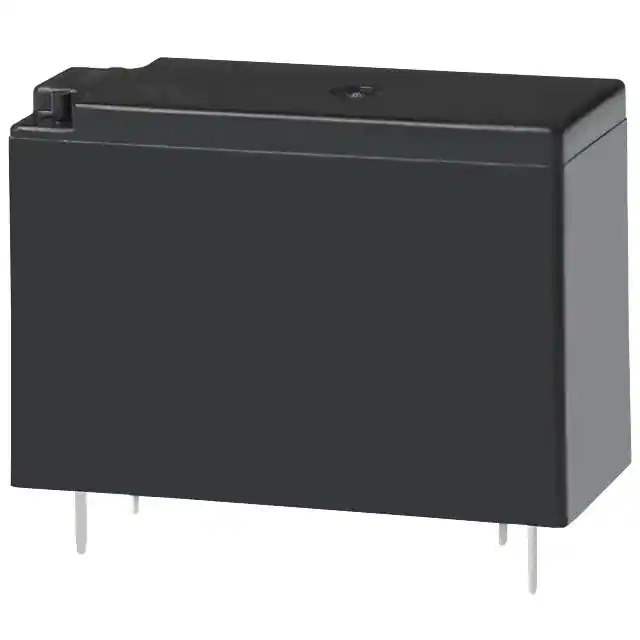

JW1AFSN-DC12V-TV-F Real Image
Same model may have multiple batches, images only for reference.

JW1AFSN-DC12V-TV-F

Part No JW1AFSN-DC12V-TV-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series JW
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 44 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 270 Ohms
Base Product Number JW1AFSN
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 846126-JW1AFSN-DC12V-TV-F
Ultra Librarian 3D Model Ultra Librarian JW1AFSN-DC12V-TV-F CAD Model

Description

The JW1AFSN-DC12V-TV-F is a power relay from Panasonic's JW series.

  • Termination Style: PC Pin
  • Packaging: Box
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Coil Voltage: 12VDC
  • Coil Resistance: 270 Ohms
  • Contact Rating: 10 A
  • Switching Voltage: Up to 250VAC or 30VDC
  • Seal: Sealed and Fully Rated
  • Operating Temperature: -40°C to 60°C
  • Product Status: Active
  • Series: JW
  • Manufacturer: Panasonic
