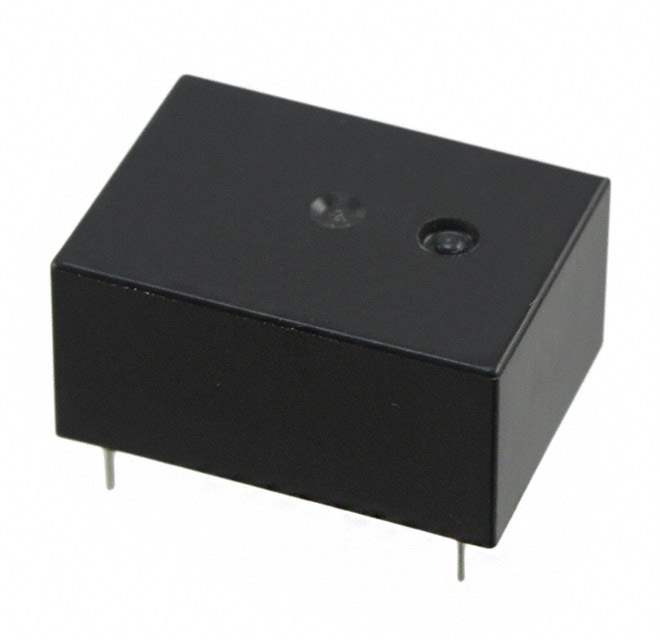

JVN1AF-24V-F Real Image
Same model may have multiple batches, images only for reference.

JVN1AF-24V-F

Part No JVN1AF-24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 277VAC, 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 12ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 113744-JVN1AF-24V-F
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian JVN1AF-24V-F CAD Model

Description

The Panasonic Electric Works 113744-JVN1AF-24V-F is a sealed, flux-protected general purpose relay with a SPST-NO (1 Form A) contact form.

  • Mounting: Through-hole
  • Termination Style: PC pin
  • Coil Voltage: 24VDC
  • Contact Rating: 16A
  • Switching Voltage: Up to 277VAC and 30VDC
  • Operate Time: 12ms
  • Release Time: 5ms
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3mA
  • Coil Power: 200 mW
  • Temperature Range: -40°C to 70°C
  • Packaging: Bulk
  • Package Quantity: 100 pieces per package
