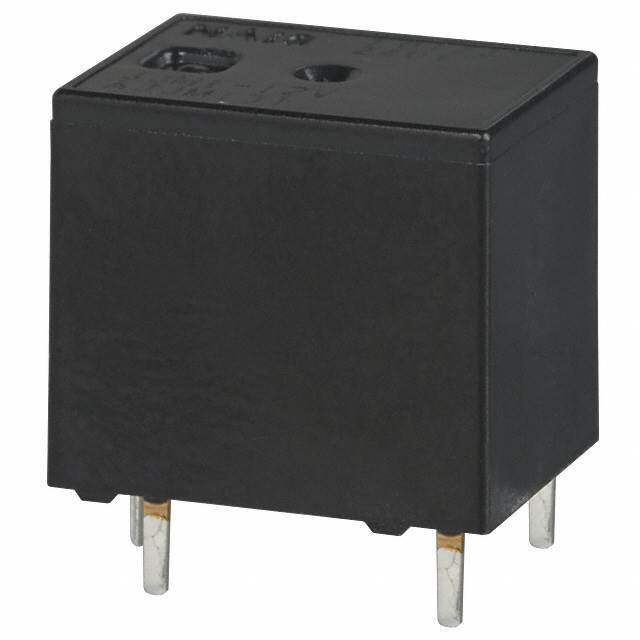

JJM2W-12V Real Image
Same model may have multiple batches, images only for reference.

JJM2W-12V

Part No JJM2W-12V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY AUTOMOTIVE SPST 12A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type Automotive
Coil Type Non Latching
Coil Current 83.3mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form U)
Contact Rating (Current) 12A
Switching Voltage 14VDC - Nom
Turn On Voltage (Max) 6.9 VDC
Turn Off Voltage (Min) 1 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 640 mW
Coil Resistance 225 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 205740-JJM2W-12V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian JJM2W-12V CAD Model

Description

The Panasonic Electric Works 205740-JJM2W-12V is a fully sealed SPST-NO (1 Form U) relay with a coil voltage of 12VDC.

  • Coil Resistance: 225 Ohms
  • Coil Current: 83.3mA
  • Operate Time: 10ms
  • Release Time: 10ms
  • Contact Rating (current): 12A
  • Switching Voltage: 14VDC - Nom
  • Turn on voltage (Max): 6.9 VDC
  • Turn off voltage (Min): 1 VDC
  • Temperature Range: -40°C to 85°C
  • Mounting: Through-hole technology
  • Application: Automotive applications
