Same model may have multiple batches, images only for reference.

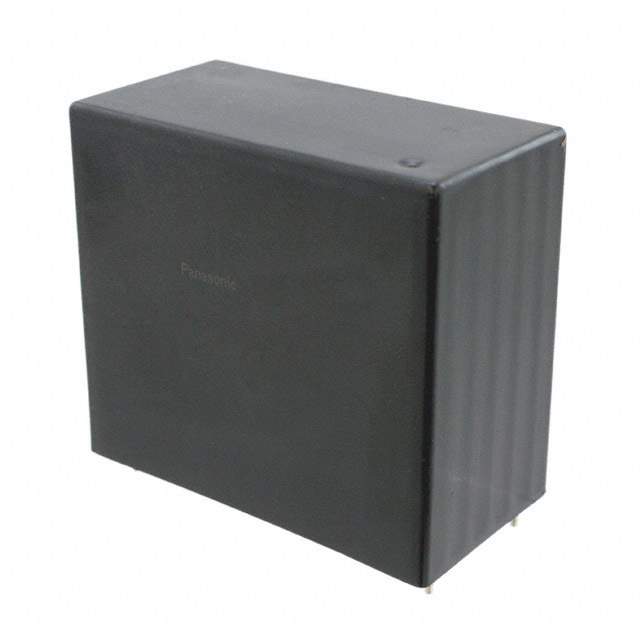

EZP-E1D156MTA Real Image
Same model may have multiple batches, images only for reference.

EZP-E1D156MTA

Part No EZP-E1D156MTA
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 15UF 10% 1.3KVDC RADIAL / 15 µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial - 4 Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Panasonic Electronic Components
Series EZPE
Package Bulk
Capacitance 15 µF
Tolerance ±10%
Voltage Rating - DC 1300V (1.3kV)
Dielectric Material Polypropylene (PP) , Metallized
ESR (Equivalent Series Resistance) 14.5 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Size / Dimension 2.264" L x 1.181" W (57.50mm x 30.00mm)
Height - Seated (Max) 2.028" (51.50mm)
Termination PC Pins
Lead Spacing 2.067" (52.50mm)
Applications DC Link, DC Filtering
Features Low ESR
Base Product Number EZP-E1
Standard Package 50
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1343405-EZP-E1D156MTA
Ultra Librarian 3D Model Ultra Librarian EZP-E1D156MTA CAD Model

Description

The Panasonic Electronic Components EZPE Film Capacitor is a low ESR capacitor with a capacitance of 15 µF and a voltage rating of 1300V (1.3kV).

  • Capacitance: 15 µF
  • Voltage Rating: 1300V (1.3kV)
  • Tolerance: ±10%
  • Lead Spacing: 2.067" (52.50mm)
  • Mounting Type: Through Hole
  • Package: Radial-4 Leads
  • Applications: DC Link, DC Filtering
  • Temperature Range: -40°C ~ 85°C
  • ESR: 14.5 mOhms
