Same model may have multiple batches, images only for reference.

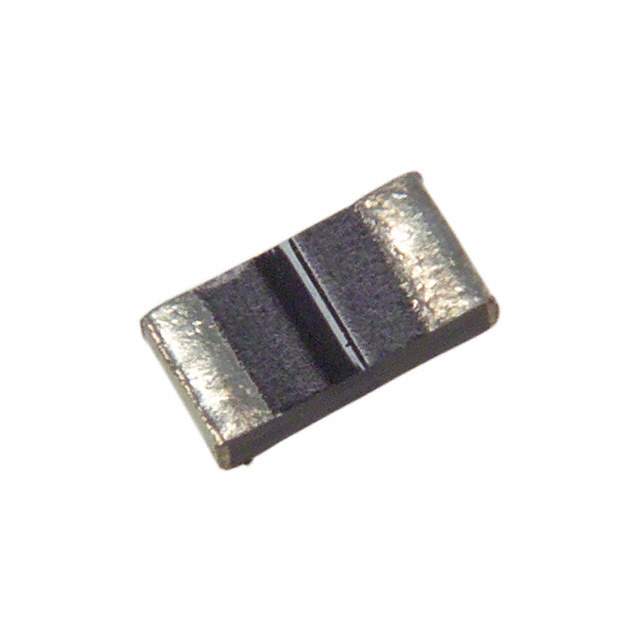

ECP-U1E684KB5 Real Image
Same model may have multiple batches, images only for reference.

ECP-U1E684KB5

Part No ECP-U1E684KB5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.68UF 10% 25VDC 1206
Datasheet
ECP-U1E684KB5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 0.68μF
Tolerance ±10%
Voltage Rating - DC 25V
Dielectric Material Acrylic, Metallized
Temperature Range - Operating -40°C to 105°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.055" (1.40mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 1035797-ECP-U1E684KB5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECP-U1E684KB5 CAD Model

Description

The Panasonic Electronic Components ECP-U1E684KB5 is a metallized acrylic capacitor that has a capacitance of 0.68μF and a tolerance of ±10%.

  • Capacitance: 0.68μF
  • Tolerance: ±10%
  • Height: 0.055" (1.40mm)
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Status: Obsolete (EOL)
