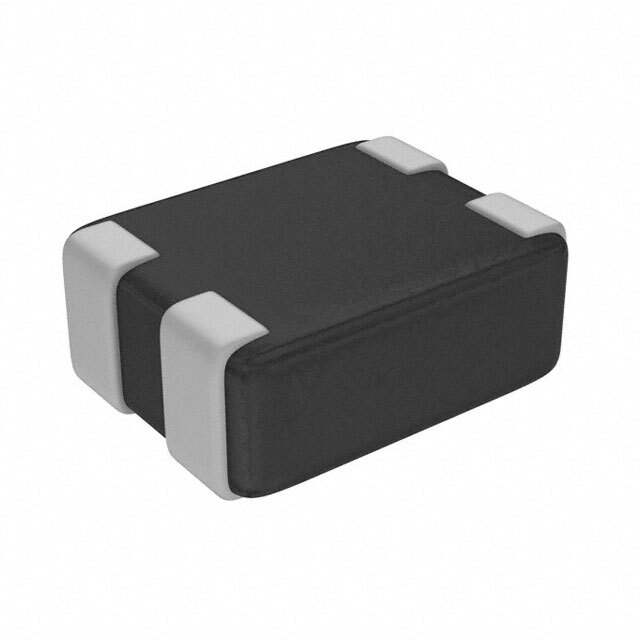

EXC-24CD201U Real Image
Same model may have multiple batches, images only for reference.

EXC-24CD201U

Part No EXC-24CD201U
Manufacturer Panasonic
Catalog Common Mode Chokes
Description CMC 130MA 2LN 200 OHM SMD
Datasheet
EXC-24CD201U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 200 Ohm @ 100MHz
Current Rating (Max) 130mA
DC Resistance (DCR) (Max) 3 Ohm
Voltage Rating - DC 5V
Mounting SMD (SMT)
Height (Max) 0.024" (0.60mm)
Dimension 0504 (1210 Metric), 4 Lead
Win Source Part Number 097826-EXC-24CD201U
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian EXC-24CD201U CAD Model

Description

Description:

The EXC-24CD201U is a versatile electronic component designed for a wide range of applications. Known for its reliability and efficiency, this component is ideal for various electronic projects.

Applications:

  • Consumer electronics
  • Industrial automation
  • Automotive electronics
  • Communication devices
  • Power supplies

Features and Benefits:

  • Compact design for easy integration
  • High stability and reliability
  • Efficient performance in demanding conditions
  • Wide operating temperature range
  • Cost-effective solution for electronics manufacturing

Additional Details:

This component is part of the EXC-series, known for its durability and excellence in performance. It is a key contributor to enhancing the functionality of your electronic systems.
