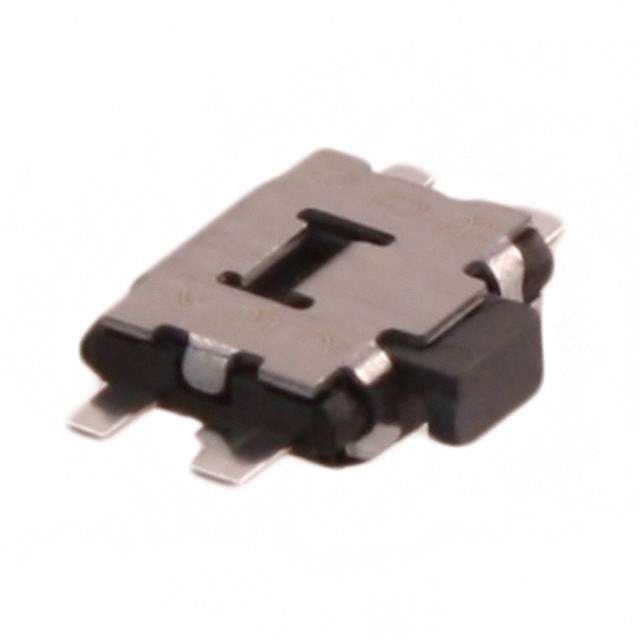

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVPAN
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 5.20mm x 2.90mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.20mm
Mechanical Life 100,000 Cycles
Base Product Number EVP-AN
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names P17180CT,P17180DKR,EVPANBA1A,P17180TR,EVP-ANBA1A-ND
Standard Package 7,000
Win Source Part Number 1122995-EVP-ANBA1A
Ultra Librarian 3D Model Ultra Librarian EVP-ANBA1A CAD Model

Description

The Panasonic Electronic Components EVP-ANBA1A is a tactile switch that is an ideal choice for electronic devices.

  • Circuit: SPST-NO
  • Switch function: Off-Mom
  • Actuator type: Rectangular button
  • Switch travel: 0.20mm
  • Contact rating @ voltage: 0.05A @ 12VDC
  • Mechanical life: 100,000 cycles
  • Mounting type: Surface mount, right angle
  • Temperature range: -20°C ~ 70°C
  • ECCN: EAR99
