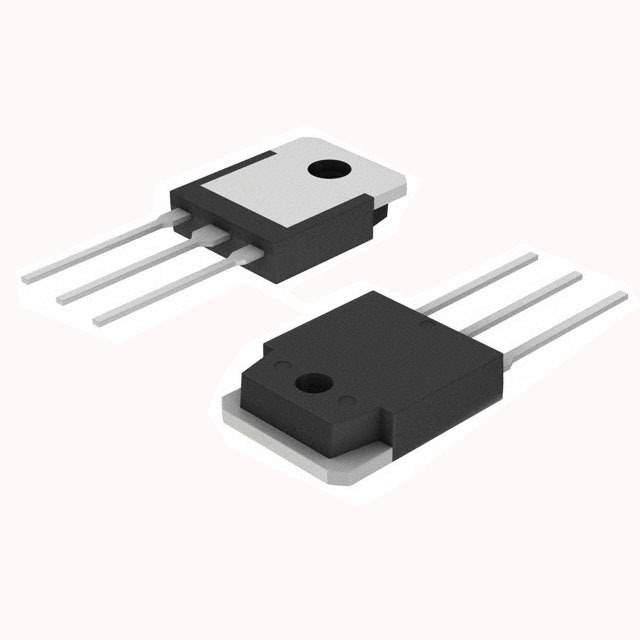

2SK3711 Real Image
Same model may have multiple batches, images only for reference.

2SK3711

Part No 2SK3711
Manufacturer Sanken
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 60V TO-3P
Datasheet
2SK3711 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Channel Type Type N
Technology MOSFET
Drain Source Voltage 60V
Current - Continuous Drain (Id) @ 25°C 70A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 1mA
Input Capacitance (Ciss) (Maximum) @ Vds 8000pF @ 10V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 130W (Tc)
Rds On (Maximum) @ Id, Vgs 6 mOhm @ 35A, 10V
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Manufacturer Package TO-3P
Package TO-3P-3, SC-65-3
Win Source Part Number 763001-2SK3711
Family Name 2SK3711
Introduction Date November 30, 2005
ECCN EAR99
Estimated EOL Date 2023
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SK3711 CAD Model

Description

The 2SK3711 is a MOSFET transistor manufactured by Sanken.

  • Mounting: Through-hole
  • Maximum Operating Temperature: 150°C
  • Package: TO-3P-3 and SC-65-3
  • Family: 2SK3711
  • Category: Discrete Semiconductor Products
  • Current Rating: 70A @ 25°C
  • Gate Charge (Qg): Maximum @ Vgs
  • Input Capacitance (Ciss): 8000pF @ 10V
  • Power Dissipation: 130W @ Tc
  • Rds On: Maximum @ Id, Vgs which is 6 mOhm @ 35A, 10V
