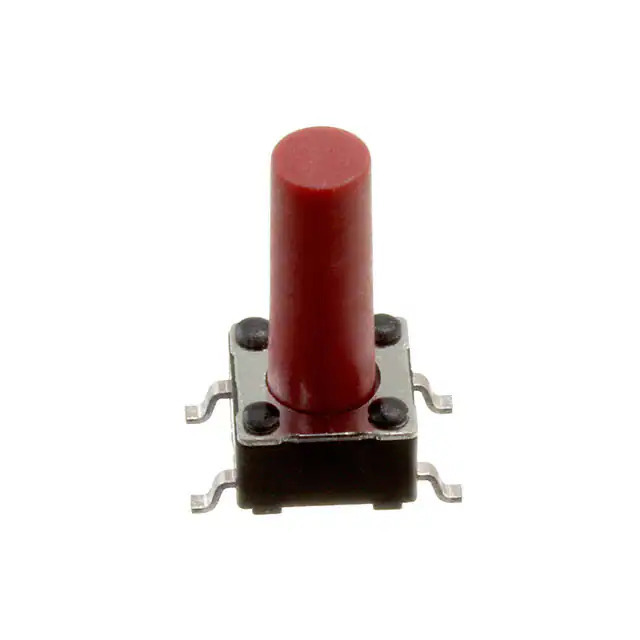

Same model may have multiple batches, images only for reference.

PTS645SK13SMTR92LFS

Name: PTS645SK13SMTR92LFS
Brand: C&K Components
SKU: 1376539
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PTS645SK13SMTR92LFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	PTS645SK13SMTR92LFS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	C&K
Series	PTS645
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	13.00mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	260gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	Polyamide (PA66), Nylon 6/6
Switch Travel	-
Mechanical Life	100,000 Cycles
Base Product Number	PTS645
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376539-PTS645SK13SMTR92LFS
Ultra Librarian 3D Model	Ultra Librarian PTS645SK13SMTR92LFS CAD Model

Description

The PTS645SK13SMTR92LFS is an active tactile switch designed for various applications by C&K.

Circuit: SPST-NO
Switch Function: Off-Momentary
Mechanical Life: 100,000 Cycles
Actuator Height: 13.00mm
Mounting Type: Surface Mount
Contact Rating: 0.05A @ 12VDC
Illumination: Non-Illuminated
Operating Force: 260gf
Actuator Material: Polyamide (PA66) and Nylon 6/6
