Same model may have multiple batches, images only for reference.

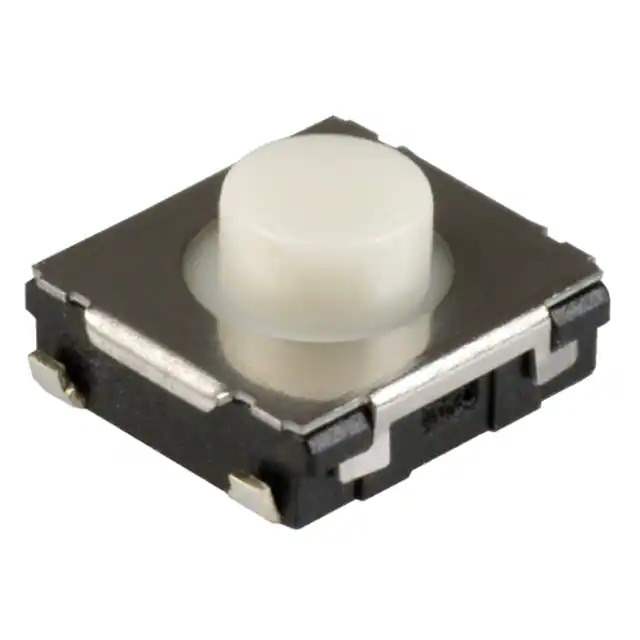

EVQ-Q2B03W Real Image
Same model may have multiple batches, images only for reference.

EVQ-Q2B03W

Part No EVQ-Q2B03W
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQQ2
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 50gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.20mm
Mechanical Life 2,000,000 Cycles
Base Product Number EVQ-Q2
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871303-EVQ-Q2B03W
Ultra Librarian 3D Model Ultra Librarian EVQ-Q2B03W CAD Model

Description

The EVQ-Q2B03W is a tactile switch designed for various applications.

  • Termination Style: J Lead
  • Mounting: Surface Mount
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.20mm
  • Contact Rating: 0.02A @ 15VDC
  • Outline: 6.50mm x 6.00mm
  • Mechanical Life: 2,000,000 cycles
  • Manufacturer: Panasonic
  • Status: Active
  • Standard Package: 2,000 pcs
