Products specifications

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQPT
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 1.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.90mm x 4.90mm
Illumination Non-Illuminated
Operating Force 163gf
Features Push Plate
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 2,000,000 Cycles
Base Product Number EVQ-PT
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 918782-EVQ-PT9A15
Ultra Librarian 3D Model Ultra Librarian EVQ-PT9A15 CAD Model

Description

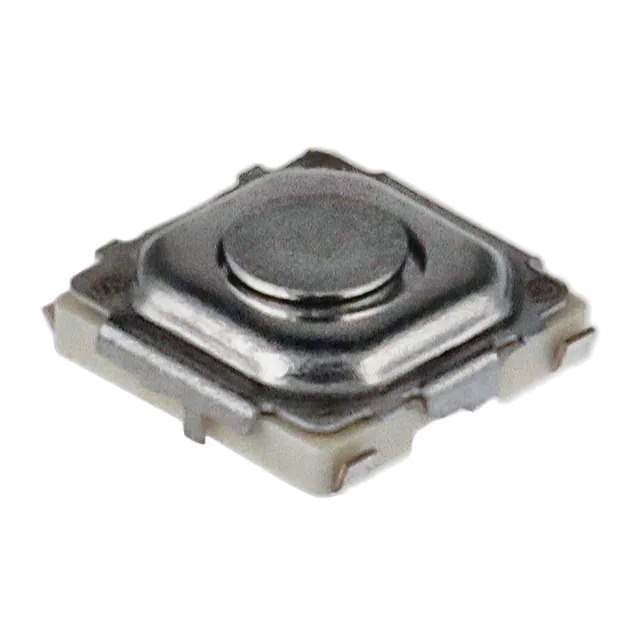

The EVQPT series tactile switch from Panasonic is a versatile electronic component suitable for a wide range of applications.

  • Actuator: Push plate actuator
  • Size: 4.90mm x 4.90mm
  • Termination Style: J lead
  • Circuit Configuration: SPST-NO
  • Function: Off-mom applications
  • Standard Package: 5,000 pcs
  • Switch Travel: 0.25mm
  • Operating Force: 163gf
  • Mechanical Life: 2,000,000 cycles
  • Operating Temperature: -20°C to 70°C
