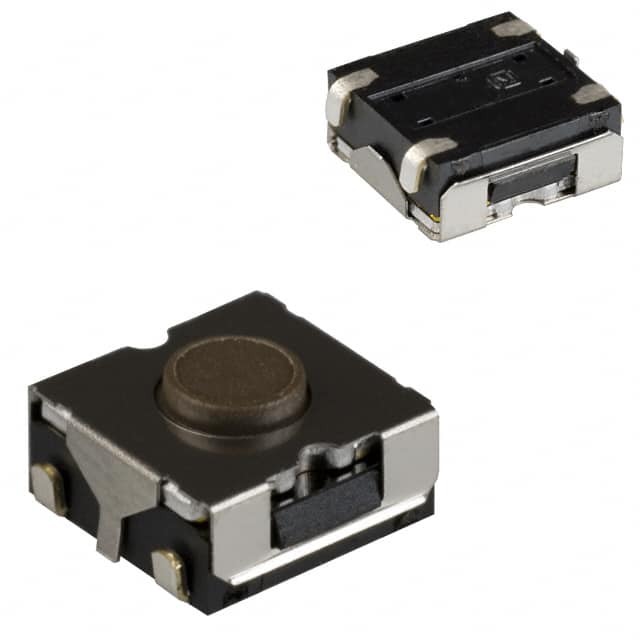

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQPH
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.40mm
Illumination Non-Illuminated
Operating Force 130gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number EVQ-PH
Standard Package 2,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871301-EVQ-PHP03T
Ultra Librarian 3D Model Ultra Librarian EVQ-PHP03T CAD Model

Description

The EVQPH series tactile switch is a high-quality electronic component manufactured by Panasonic.

  • Size: 6.50mm x 6.40mm
  • Actuation: Top Actuated
  • Circuit: SPST-NO
  • Switching: Off-Momentary
  • Switch Travel: 0.25mm
  • Contact Rating: 0.02A @ 15VDC
  • Operating Force: 130gf
  • Mechanical Life: 100,000 cycles
  • Mounting: Surface Mount
  • Temperature Range: -20°C to 70°C
