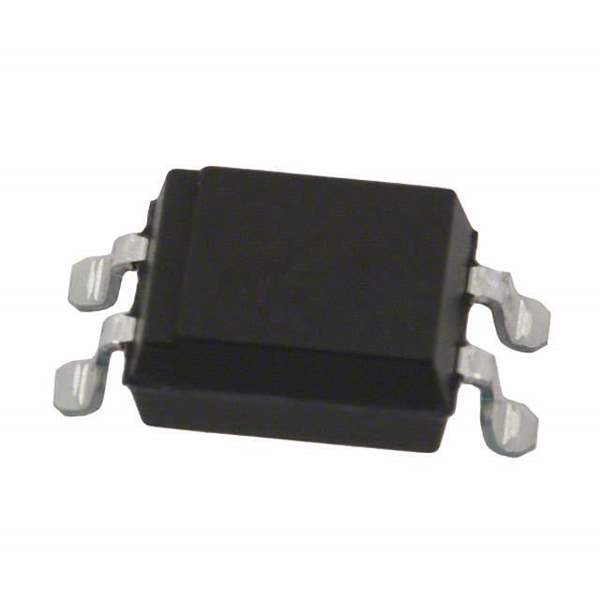

PC817X1NIP0F Sharp Microelectronics PC817X1NIP0F Real Image
Same model may have multiple batches, images only for reference.

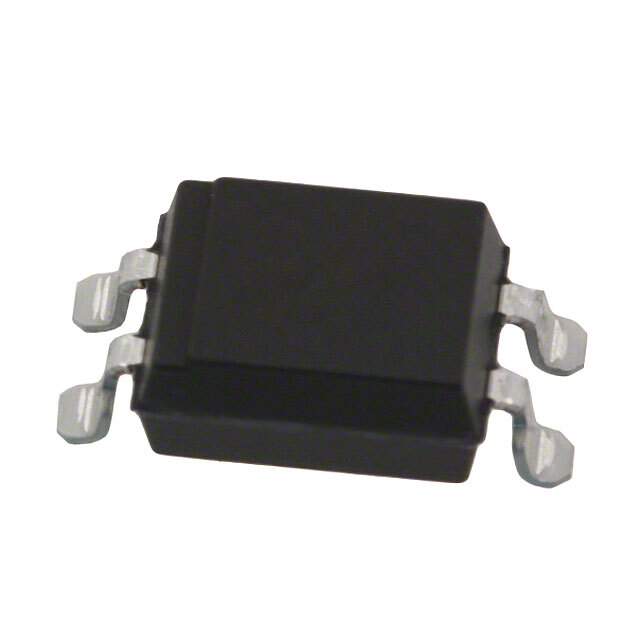

PC817X1NIP0F Sharp Microelectronics PC817X1NIP0F Real Image
PC817X1NIP0F Sharp Microelectronics PC817X1NIP0F Real Image
Same model may have multiple batches, images only for reference.

PC817X1NIP0F

Part No PC817X1NIP0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS 4ESOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 160% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 045628-PC817X1NIP0F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PC817X1NIP0F
Introduction Date March 17, 2010
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian PC817X1NIP0F CAD Model

Description

The Sharp Microelectronics PC817X1NIP0F is an SMD (SMT) mounting type transistor output type optocoupler that has a forward voltage of 1.2V and an isolation voltage of 5000Vrms.

  • Mounting Type: SMD (SMT)
  • Output Type: Transistor
  • Forward Voltage: 1.2V
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 80% @ 5mA
  • Maximum DC Current Transfer Ratio: 160% @ 5mA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Channel Output Current: 50mA
  • Continuous Forward Current Max: 50mA
  • Temperature Range: -30°C to 100°C
  • Category: Isolators
  • Supply and Demand Status: Balanced
  • Quantity per Package: 2k pcs
  • Alternative Parts: CPC1303GRTR, CPC1303GR, LTV-123S-TA1
