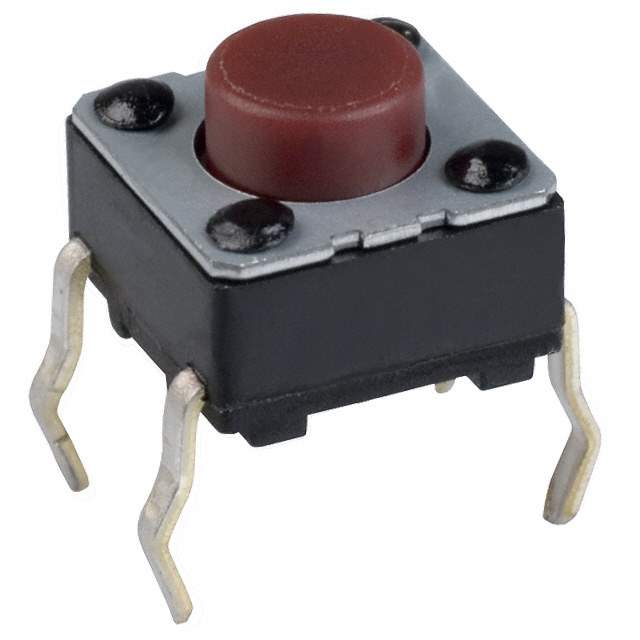

EVQ-PAE05R

Name: EVQ-PAE05R
Brand: Panasonic
SKU: 959855
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EVQ-PAE05R
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQPA
Package	Bulk
Product Status	Obsolete
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	5.00mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-20°C ~ 70°C
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	EVQ-PA
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	P12192S-NDR,EVQ-PAE05R-ND,P12192S,EVQPAE05R
Standard Package	500
Win Source Part Number	959855-EVQ-PAE05R
Ultra Librarian 3D Model	Ultra Librarian EVQ-PAE05R CAD Model

Description

The EVQ-PAE05R is a tactile switch manufactured by Panasonic Electronic Components.

Termination Style: PC Pin
Mounting Type: Through-Hole
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Standard
Switch Travel: 0.25mm
Contact Rating @ Voltage: 0.02A @ 15VDC
Operating Force: 160gf
Mechanical Life: 100,000 Cycles
Package: Bulk
Standard Package: 500
Actuator Height off PCB, Vertical: 5.00mm
Operating Temperature Range: -20°C to 70°C
MSL Level: 1 (Unlimited)
HTSUS: 8536.50.9031
Status: Obsolete (EOL)
