Same model may have multiple batches, images only for reference.

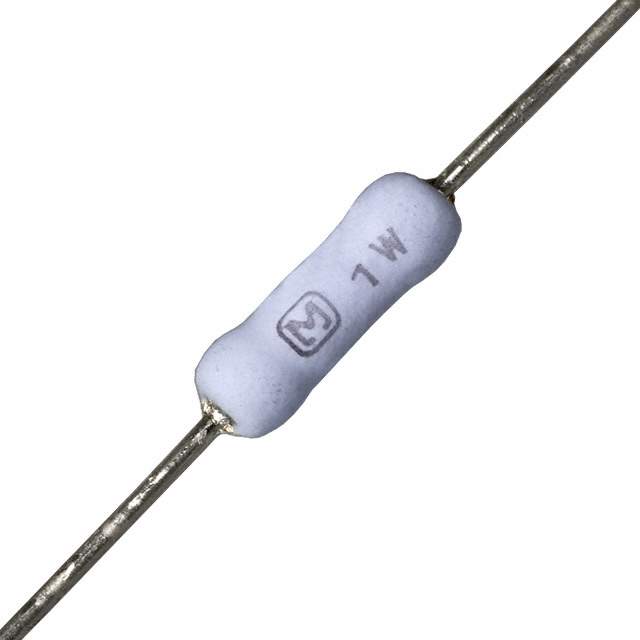

ERG-1SJ470A Real Image
Same model may have multiple batches, images only for reference.

ERG-1SJ470A

Part No ERG-1SJ470A
Manufacturer Panasonic
Catalog Through Hole Resistors
Description RES 47 OHM 5% 1W AXIAL / 47 Ohms ±5% 1W Through Hole Resistor Axial Flame Proof, Safety Metal Oxide Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Panasonic Electronic Components
Series ERG
Package Tape & Reel (TR)
Product Status Obsolete
Resistance 47 Ohms
Tolerance ±5%
Power (Watts) 1W
Composition Metal Oxide Film
Features Flame Proof, Safety
Temperature Coefficient ±350ppm/°C
Temperature Range - Operating -55°C ~ 235°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.110" Dia x 0.354" L (2.80mm x 9.00mm)
Number of Terminations 2
Base Product Number ERG-1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names P47W-1TR-NDR,ERG1SJ470A,Q7067676,P47W-1TR
Standard Package 5,000
Win Source Part Number 1161476-ERG-1SJ470A
Ultra Librarian 3D Model Ultra Librarian ERG-1SJ470A CAD Model

Description

The ERG series through hole resistor from Panasonic Electronic Components is a metal oxide film resistor with a power rating of 1W and a resistance of 47 Ohms.

  • Power Rating: 1W
  • Resistance: 47 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±350ppm/°C
  • Features: Flame Proof and Safety Compliant
  • Package: Tape and Reel
  • Pieces per Package: 5000
  • Package Type: Axial
  • Terminations: 2
  • Operating Temperature Range: -55°C to 235°C
  • Dimensions: 0.110" Dia x 0.354" L (2.80mm x 9.00mm)
  • Alternative: ERG1SJ470A
