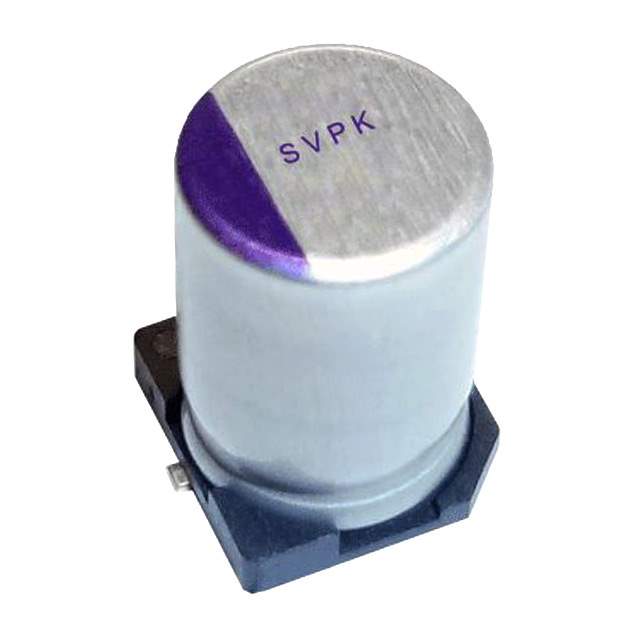

Same model may have multiple batches, images only for reference.

35SVPK330M

Name: 35SVPK330M
Brand: Panasonic
SKU: 1308434
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	35SVPK330M
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	OS-CON™, SVPK
Package	Tape & Reel
Type	Polymer
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	18mOhm
Lifetime @ Temp.	1000 Hrs @ 125°C
Temperature Range - Operating	-55°C ~ 125°C
Applications	General Purpose
Ripple Current @ Low Frequency	69.5 mA @ 120 Hz
Ripple Current @ High Frequency	1.39 A @ 100 kHz
Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	35SVPK
Other Names	P122136TR,P122136CT,P122136DKR
Standard Package	400
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308434-35SVPK330M
Ultra Librarian 3D Model	Ultra Librarian 35SVPK330M CAD Model

Description

The Panasonic SVPK330M is an aluminum-polymer capacitor from the OS-CON™, SVPK series.

Capacitance: 330μF
Voltage Rating: 35V
Tolerance: ±20%
ESR: 18mOhm
Package/Case: Radial, Can-SMD
Surface Mount Land Size: 0.406” L x 0.406” W (10.30mm x 10.30mm)
Height When Seated: 0.500” (12.70mm)
Dimension: 0.394” Dia (10.00mm)
Lifetime: 1000 hours @ 125°C
Polarization: Polarized
