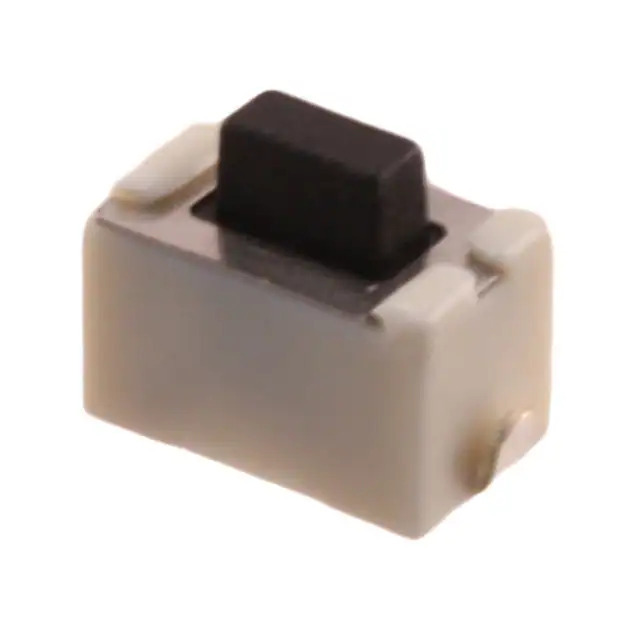

EVQ-5PN05K

Name: EVQ-5PN05K
Brand: Panasonic
SKU: 1376513
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EVQ-5PN05K
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQ5PN
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	5.00mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	J Lead
Outline	6.00mm x 3.50mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	240gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-30°C ~ 85°C
Actuator Material	-
Switch Travel	0.25mm
Mechanical Life	30,000 Cycles
Base Product Number	EVQ-5P
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376513-EVQ-5PN05K
Ultra Librarian 3D Model	Ultra Librarian EVQ-5PN05K CAD Model

Description

The EVQ-5PN05K is a tactile switch from Panasonic Electronic Components.

Series: EVQ5PN
Circuit Configuration: SPST-NO
Switch Function: Off-Mom
Actuator Type: Standard
Illumination: Non-illuminated
Mechanical Life: 30,000 cycles
Contact Rating: 0.05A @ 12VDC
Operating Force: 240gf
Switch Travel: 0.25mm
Mounting: Surface mount
Termination: J lead
Outline Dimensions: 6.00mm x 3.50mm
MSL: Level 1 (unlimited)
ECCN: EAR99
