Products specifications

Win Source Part Number 300000585-EVPBL9A2B000
Manufacturer Panasonic Electronic Components
Category Switches -Tactile Switches
Series EVPBL
Package Tape & Reel (TR) /Cut Tape (CT)
Circuit SPST-NO
Switch Function Off-Mom
Actuator Type Standard
Actuator Orientation Top Actuated
Outline 2.80mm x 1.90mm
Illumination Non-Illuminated
Ultra Librarian 3D Model Ultra Librarian EVPBL9A2B000 CAD Model

Description

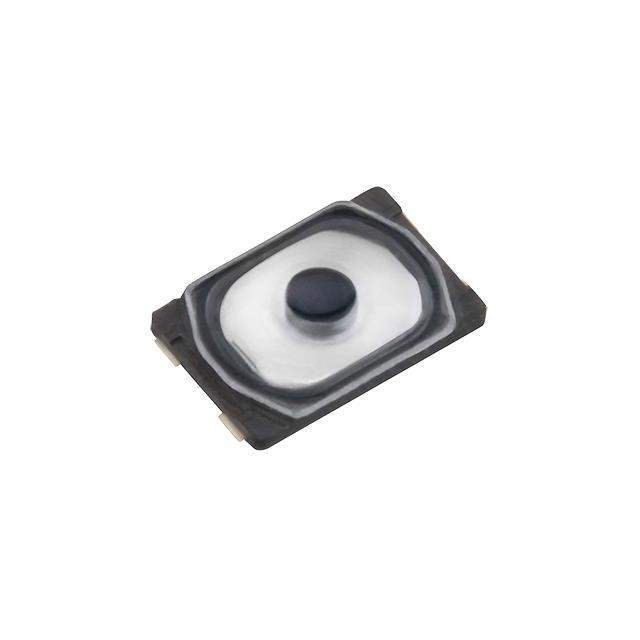

The EVPBL series tactile switch is an SPST-NO switch from Panasonic Electronic Components.

  • Switch Function: off-mom
  • Actuator Type: standard
  • Actuator Orientation: top actuated
  • Packaging: tape and reel (TR) /cut tape (CT)
  • Outline: 2.80mm x 1.90mm
  • Illumination: non-illuminated
  • Category: switches-tactile switches
