Same model may have multiple batches, images only for reference.

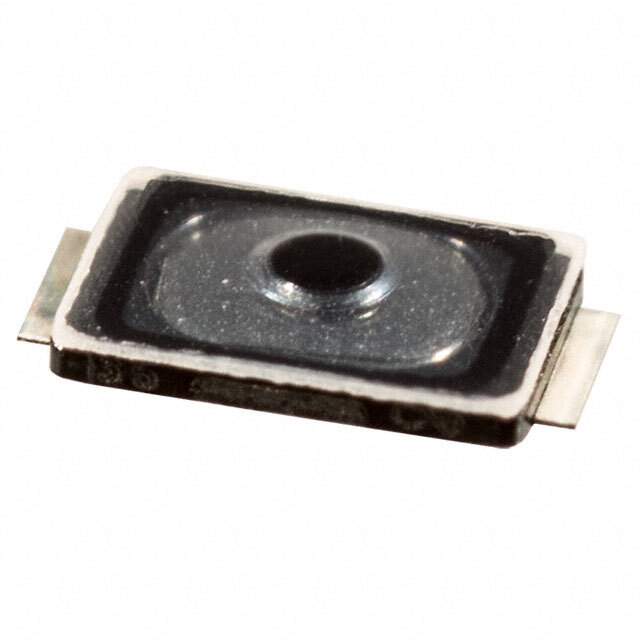

EVP-AWCD2A Real Image
Same model may have multiple batches, images only for reference.

EVP-AWCD2A

Part No EVP-AWCD2A
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
EVP-AWCD2A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVPAW
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.60mm
Actuator Orientation Top Actuated
Termination Style SMD (SMT) Tab
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Operating Force 240gf
Ingress Protection IP67 - Dust Tight, Waterproof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.13mm
Mechanical Life 500,000 Cycles
Base Product Number EVP-AW
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Other Names P19744CT,P19744DKR,EVPAWCD2A,P19744TR
Standard Package 10,000
Win Source Part Number 961232-EVP-AWCD2A
Ultra Librarian 3D Model Ultra Librarian EVP-AWCD2A CAD Model

Description

Panasonic Electronic Components EVPAW is a series of tactile switches that is perfect for industrial and automotive applications.

  • Ingress Protection: IP67 - dust tight, waterproof
  • Circuit: SPST-NO
  • Package: Tape & reel
  • Pieces per Package: 10,000
  • Operating Force: 240gf
  • Mechanical Life: 500,000 cycles
  • ECCN: EAR99
  • HTSUS: 8536.50.9031
  • Alternative Parts: SKHMQLE010, TL3780AF330QG, KSEM31GLFS, EVP-AWBD2A, TL3750AF100QG, KSC741GLFSEVPAWCD2A
