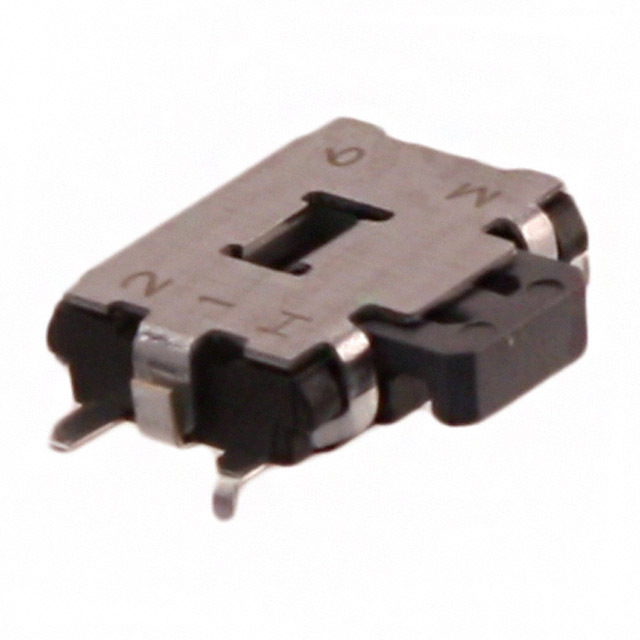

EVP-AEGE2A

Part No EVP-AEGE2A
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.02A 15V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Rectangular Button
Mounting Type Edge Mount, Right Angle
Actuator Length, Right Angle 1.70mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 5.55mm x 2.20mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -40°C ~ 85°C
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1563620-EVP-AEGE2A
Ultra Librarian 3D Model Ultra Librarian EVP-AEGE2A CAD Model
