FSM103
Same model may have multiple batches, images only for reference.

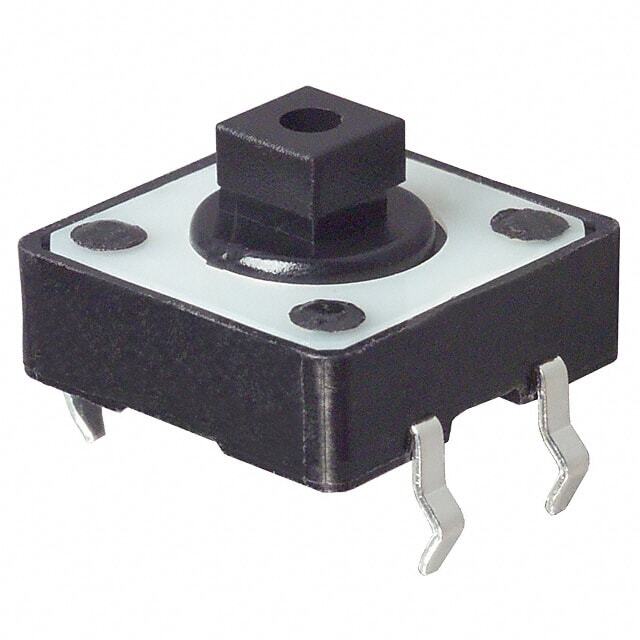

FSM103

Part No FSM103
Manufacturer TE Connectivity
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr TE Connectivity
Series FSM100 ~ 104
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical 7.28mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.00mm x 12.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -35°C ~ 85°C
Actuator Material Acetal
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Base Product Number FSM1
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 850146-FSM103
Ultra Librarian 3D Model Ultra Librarian FSM103 CAD Model

Description

The 850146-FSM103 is a tactile switch from TE Connectivity.

  • Termination Style: PC Pin
  • Actuator Type: Plunger for Cap
  • Switch Function: Off-Mom
  • Switch Travel: 0.30mm
  • Contact Rating @ Voltage: 0.05A @ 24VDC
  • Operating Force: 160gf
  • Mounting Type: Through Hole
  • Temperature Range: -35°C ~ 85°C
  • Outline: 12.00mm x 12.00mm
  • Actuator Height: 7.28mm
  • Mechanical Life: 100,000 Cycles
  • Series: FSM100 ~ 104
  • Status: Active
