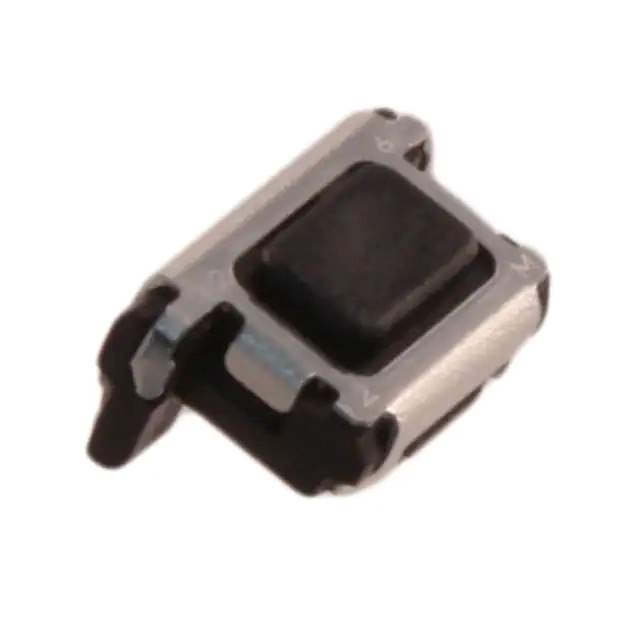

Same model may have multiple batches, images only for reference.

EVP-AEBB2A

Name: EVP-AEBB2A
Brand: Panasonic
SKU: 918760
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EVP-AEBB2A
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Side Actuated Edge Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	Panasonic
Series	EVPAE
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.02A @ 15VDC
Actuator Type	Rectangular Button
Mounting Type	Edge Mount, Right Angle
Actuator Length, Right Angle	1.70mm
Actuator Orientation	Side Actuated
Termination Style	SMD (SMT) Tab
Outline	4.80mm x 2.20mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-40°C ~ 85°C
Switch Travel	0.15mm
Mechanical Life	200,000 Cycles
Base Product Number	EVP-AE
Standard Package	3,500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	918760-EVP-AEBB2A
Ultra Librarian 3D Model	Ultra Librarian EVP-AEBB2A CAD Model

Description

The 918760-EVP-AEBB2A is a tactile switch that belongs to the EVPAE series.

Termination Style: SMD (SMT) tab
Actuator Type: Rectangular button actuator
Actuation Travel: 0.15mm
Contact Rating: 0.02A @ 15VDC
Operating Force: 160gf
Illumination: Non-Illuminated
Temperature Range: -40°C to 85°C
Mounting: Edge mount, right-angle
Package Type: Tape and Reel
Standard Package Quantity: 3,500 pieces
Product Status: Active from Panasonic
