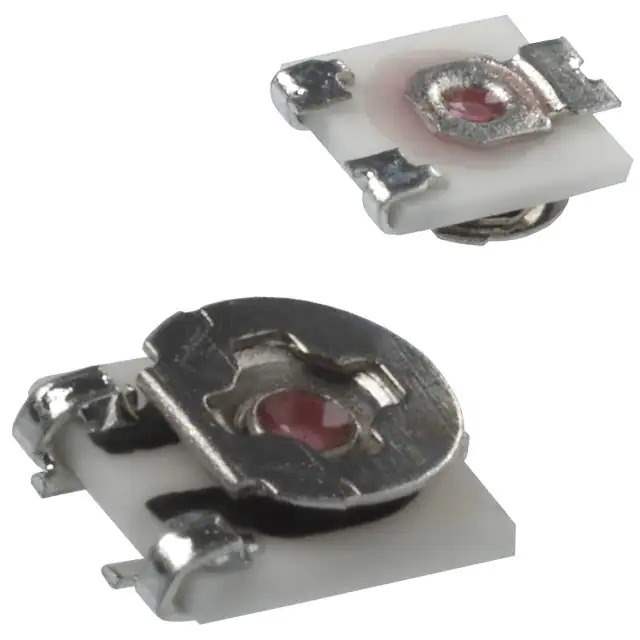

EVM-2NSX80B55 Real Image
Same model may have multiple batches, images only for reference.

EVM-2NSX80B55

Part No EVM-2NSX80B55
Manufacturer Panasonic
Catalog Trimmer Potentiometers
Description TRIMMER 500KOHM 0.15W J LEAD TOP / 500 kOhms 0.15W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors - Trimmer Potentiometers
Mfr Panasonic
Series EVM
Package Tape & Reel
Product Status Obsolete
Resistance 500 kOhms
Power (Watts) 0.15W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Type Surface Mount
Termination Style J Lead
Size / Dimension Rectangular - 0.111" x 0.087" Face (2.81mm x 2.20mm)
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8050
Win Source Part Number 871285-EVM-2NSX80B55
Ultra Librarian 3D Model Ultra Librarian EVM-2NSX80B55 CAD Model

Description

The 871285-EVM-2NSX80B55 is a potentiometer from Panasonic's EVM series. Bold the product name (e.g., BAV99S,135 → 871285-EVM-2NSX80B55) and manufacturer (e.g., Nexperia USA Inc. → Panasonic).

  • Type: Variable resistor
  • Resistance: 500 kOhms
  • Power Rating: 0.15W
  • Adjustment Type: Top adjustment
  • Resistive Material: Cermet
  • Tolerance: ±25%
  • Temperature Coefficient: ±250ppm/°C
  • Termination Style: J Lead
  • Mounting: Surface mount
  • Package Size: Rectangular, measuring 0.111" x 0.087" face (2.81mm x 2.20mm)
  • Package: Tape & reel
  • Standard Package Quantity: 3,000 pcs
  • Category: Potentiometers, variable resistors - trimmer potentiometers
  • Status: Obsolete
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8533.40.8050
