ESE-20D421 Panasonic – Price, Stock & Datasheet

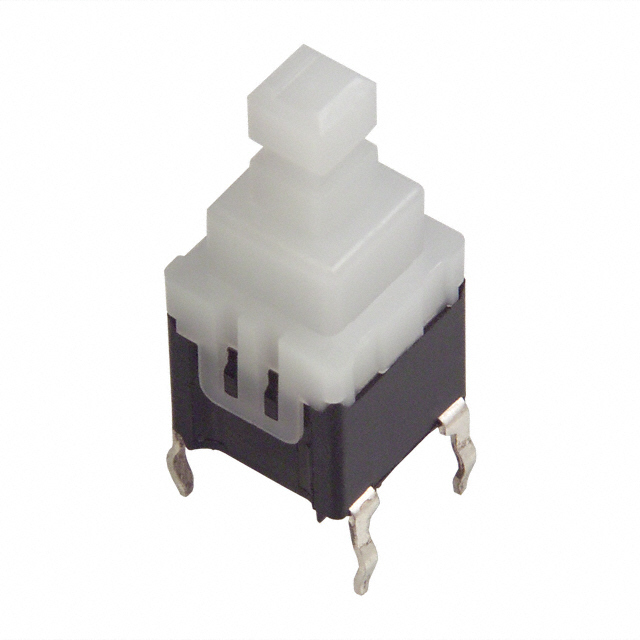

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Last Time Buy
Mounting Type Through Hole
Type Standard
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 14 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap White
Termination Style PC Pin
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1552578-ESE-20D421
Ultra Librarian 3D Model Ultra Librarian ESE-20D421 CAD Model
