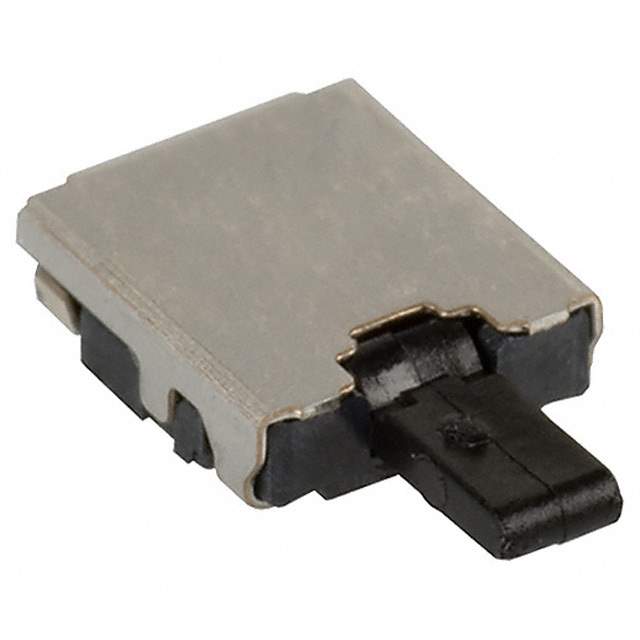

ESE-13H01B Real Image
Same model may have multiple batches, images only for reference.

ESE-13H01B

Part No ESE-13H01B
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V / Switch SPST-NO Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Surface Mount, Right Angle
Termination Style J Lead
Features Board Guide
Operating Force 30gf
Pretravel 15°
Overtravel 60°
Temperature Range - Operating -10°C ~ 60°C
Operating Position 15°
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-13
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Part Number ESE13H01B-ND,P13357SCT,P13357STR,ESE13H01B,P13357SDKR,Q1541815
Standard Package 5,000
Win Source Part Number 1323842-ESE-13H01B
Ultra Librarian 3D Model Ultra Librarian ESE-13H01B CAD Model

Description

The Panasonic Electronic Components ESE-13H01B is a limit switch with a circuit of SPST-NO and a switch function of Off-Mom.

  • Actuator Type: Angled Toggle (Detector)
  • Operating Force: 30gf
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 50,000 cycles
  • Pretravel: 15 degrees
  • Overtravel: 60 degrees
  • Operating Position: 15 degrees
  • Temperature Range: -10 degrees Celsius to 60 degrees Celsius
  • ROHS: Compliant
  • Packaging: Reel-TR
  • Termination Style: J Lead
  • Standard Package: 5,000
