Same model may have multiple batches, images only for reference.

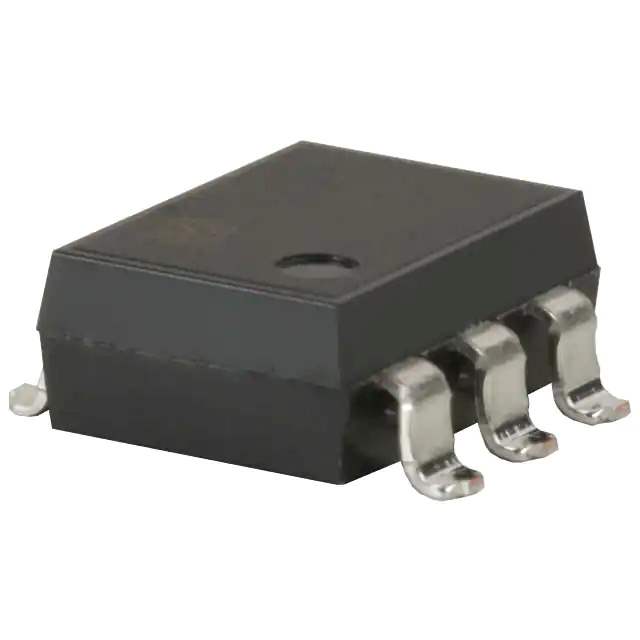

AQV112KLA Real Image
Same model may have multiple batches, images only for reference.

AQV112KLA

Part No AQV112KLA
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 500MA 0-60V / Solid State SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQV
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type DC, Current Limited
Voltage - Input 1.35VDC
Voltage - Load 0 V ~ 60 V
Load Current 500 mA
On-State Resistance (Max) 2 Ohms
Termination Style Gull Wing
Package / Case 6-SMD (0.300", 7.62mm)
Supplier Device Package 6-SMD
Base Product Number AQV112
Standard Package 50 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 564335-AQV112KLA
Ultra Librarian 3D Model Ultra Librarian AQV112KLA CAD Model

Description

The PhotoMOS AQV112KLA is a solid-state relay with a voltage input of 1.35VDC.

  • Circuit Configuration: SPST-NO (1 Form A)
  • Load Current: 500 mA
  • Mounting: Surface mount
  • Package: 6-SMD
  • Voltage Load Range: 0 V to 60 V
  • On-State Resistance: 2 Ohms
  • Series: PhotoMOS AQV series
  • Manufacturer: Panasonic
  • Packaging: Tube, 50 pieces per package
  • Status: Active product
