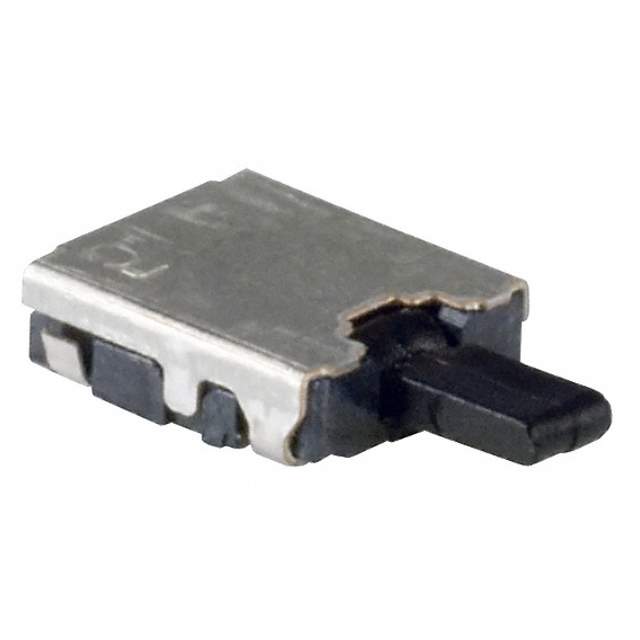

ESE-13H01A

Part No ESE-13H01A
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V / Switch SPST-NO Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electronic Components
Series ESE13
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Angled Toggle (Detector)
Mounting Type Surface Mount, Right Angle
Termination Style J Lead
Operating Force 30gf
Pretravel 15°
Overtravel 60°
Temperature Range - Operating -10°C ~ 60°C
Operating Position 15°
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-13
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names P11152STR-NDR,ESE-13H01,P11152SDKR,P11152SCT-NDR,P11152SCT,ESE13H01A,P11152STR,ESE13H01,Q1874973
Standard Package 5,000
Win Source Part Number 1108577-ESE-13H01A
Ultra Librarian 3D Model Ultra Librarian ESE-13H01A CAD Model

Description

The Panasonic Electronic Components ESE-13 series limit switch is an SPST-NO circuit switch with an off-mom switch function.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Angled Toggle (Detector)
  • Operating Force: 30gf
  • Pretravel: 15°
  • Overtravel: 60°
  • Termination Style: J-Lead
  • Mounting Type: Surface Mount, Right Angle
  • Mechanical Life: 50,000 Cycles
  • Electrical Life: 50,000 Cycles
  • Voltage Rating: 5 V DC
  • Current Rating: 10mA
  • Operating Temperature: -10°C to 60°C
  • Package: Tape & Reel
  • Category: Switches and Limit Switches
  • Manufacturer: Panasonic Electronic Components
