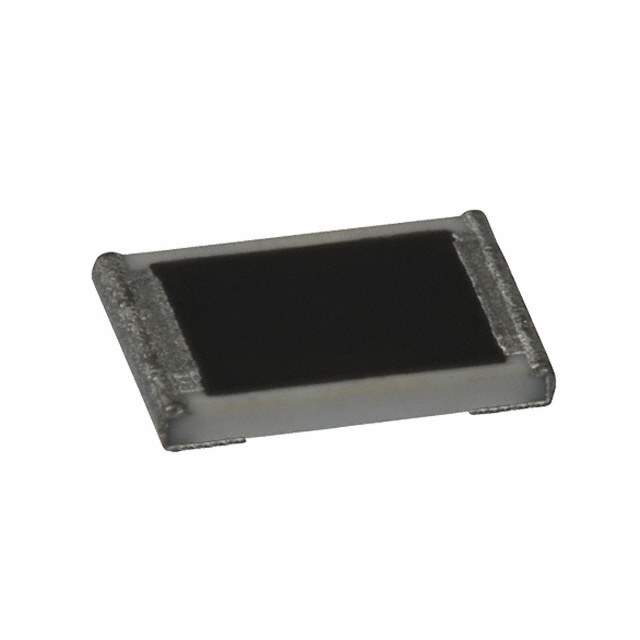

The ERA-V27J102V is a pulse-proof chip resistor manufactured by Panasonic. This specialized resistor is designed to withstand high pulse loads, making it suitable for applications with intermittent high-power demands or frequent voltage spikes. Its robust construction allows it to maintain its resistance value and structural integrity even under harsh operating conditions. The 'V' in the part number indicates its pulse-proof characteristics.

Applications:

• Power supplies
• Motor drives
• Lighting circuits
• Automotive electronics
• Welding equipment

Features:

• Pulse-proof design
• High reliability
• Surface mount technology (SMT)
• Compact size
• RoHS compliant
• Resistance value: 1 kΩ (102 = 10 x 10^2)

Benefits:

• Improved reliability and longevity in pulse-loaded applications
• Reduced risk of component failure due to high-power surges
• Stable performance under intermittent high-power conditions
• Simplified circuit design due to robust pulse withstanding capability
• Environmentally friendly due to RoHS compliance

Additional Details:

The ERA-V27J102V has a resistance value of 1 kΩ (kiloohms). The '102' marking indicates the resistance value: 10 x 10^2 ohms. The most important parameter is its pulse withstanding capability, which is typically specified in terms of the maximum pulse power and pulse duration it can handle. The power rating is typically 0.25W or 0.5W. The tolerance is typically ±5%, refer to the datasheet. The operating temperature ranges from -55°C to +155°C. The TCR is normally ±100 ppm/°C or ±200 ppm/°C.

Proper soldering and PCB layout techniques are essential for reliable operation. When designing with pulse-proof resistors, it is important to carefully consider the expected pulse characteristics (amplitude, duration, frequency) and select a resistor with adequate pulse withstanding capability. Also ensure it is correctly connected and mounted to effectively dissipate heat and manage surge currents.
