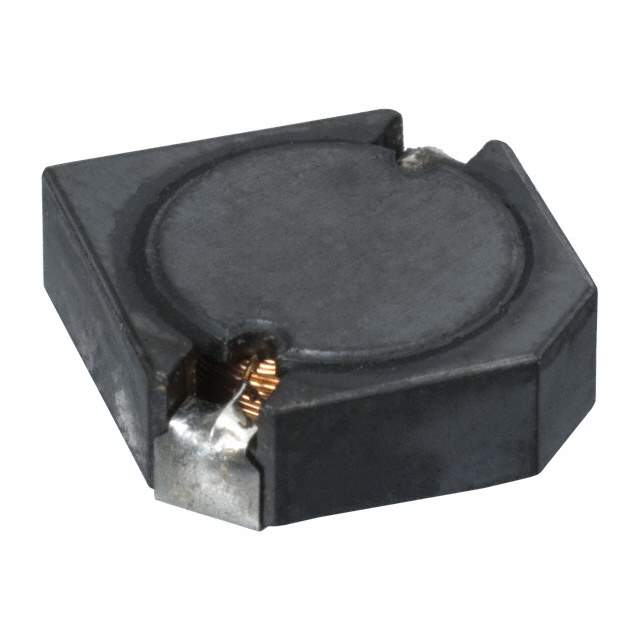

ELLCTV5R6N

Part No ELLCTV5R6N
Manufacturer Panasonic
Catalog Fixed Inductors
Description Ind Power Choke Shielded Wirewound 5.6uH 30% 100KHz 4.9A Embossed Carrier T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Nonstandard
Composition Wirewound
Core Material Ferrite
Current Rating 4.9 A
DC Resistance (DCR) 11 mΩ
Depth 12.5 mm
Height 4.5 mm
Height - Seated (Max) 4.4958 mm
Inductance 5.6 µH
Inductance Tolerance 30 %
Lead Free Yes
Length 12 mm
Max DC Current 4.9 A
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Pins 2
Packaging Cut Tape
Radiation Hardening No
REACH SVHC No SVHC
Resistance 11 mΩ
RMS Current (Irms) 4.9 A
RoHS Compliant
Self Resonant Frequency 100 kHz
Shielding Shielded
Termination SMD/SMT
Test Frequency 100 kHz
Tolerance 30 %
Width 11.9888 mm
Win Source Part Number 993568-ELLCTV5R6N
Categories Fixed Inductors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ELLCTV5R6N CAD Model

Description

This Panasonic Shielded Fixed Inductor has an inductance of 5.6 µH and is suitable for use in various electronic applications.

  • Manufacturer: Panasonic
  • Type: Shielded Fixed Inductor
  • Inductance: 5.6 µH
  • Tolerance: 30%
  • Temperature Range: -40°C to 105°C
  • Maximum DC Current: 4.9 A
  • DC Resistance (DCR): 11 mΩ
  • Case/Package: Non-Standard
  • Packaging: Cut Tape
  • MSL Level: 1 (Unlimited)
  • RoHS: Compliant
  • Supply and Demand Status: Shortage
