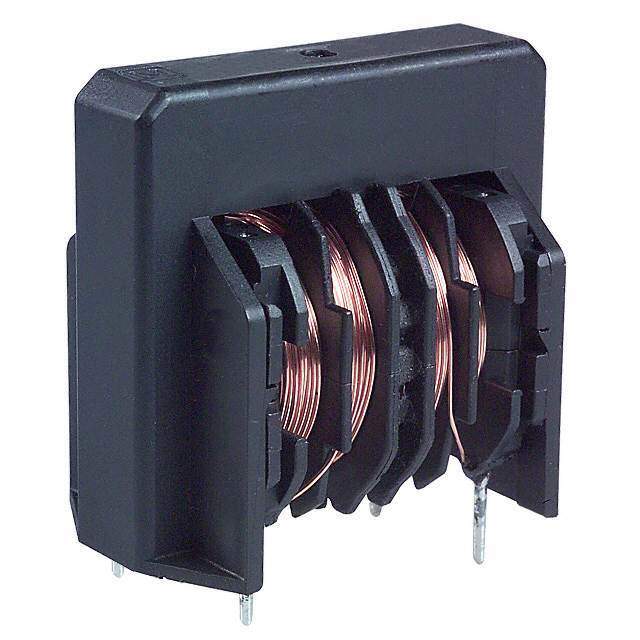

ELF-18N006A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Panasonic Electronic Components
Series N
Package Bulk
Product Status Obsolete
Number of Lines 2
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 1.1Ohm (Typ)
Mounting Type Through Hole
Size / Dimension 0.709" L x 1.083" W (18.00mm x 27.50mm)
Height (Max) 1.083" (27.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number ELF-18
Standard Package 500
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1340075-ELF-18N006A
Ultra Librarian 3D Model Ultra Librarian ELF-18N006A CAD Model

Description

The Panasonic Electronic Components ELF-18 series N common mode choke filter is a through-hole mount component with a vertical 4 PC pin package.

  • Manufacturer: Panasonic Electronic Components
  • Product Name: ELF-18 series N
  • Mounting Type: Through Hole
  • Package: Vertical 4 PC Pin
  • Size: 0.709" L x 1.083" W (18.00mm x 27.50mm)
  • Maximum Height: 1.083" (27.50mm)
  • Maximum Current: 600mA
  • DCR: 1.1Ohm (Typ)
  • Status: Obsolete
  • RoHS: Non-Compliant
