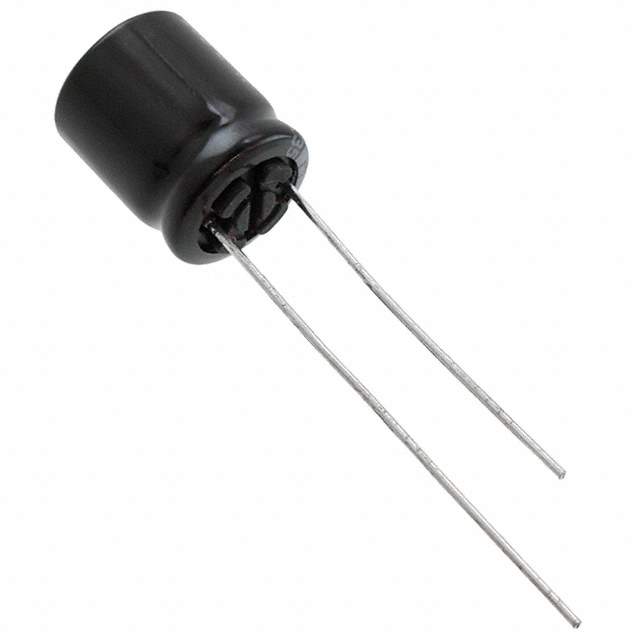

Same model may have multiple batches, images only for reference.

EEU-TP1V101B

Name: EEU-TP1V101B
Brand: Panasonic
SKU: 1336885
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EEU-TP1V101B
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 35V RADIAL / 100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TP-A
Package	Cut Tape (CT) Tape & Box (TB)
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	3000 Hrs @ 125°C
Temperature Range - Operating	-40°C ~ 135°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	377 mA @ 120 Hz
Ripple Current @ High Frequency	500 mA @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.551" (14.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Base Product Number	EEU-TP
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1336885-EEU-TP1V101B
Ultra Librarian 3D Model	Ultra Librarian EEU-TP1V101B CAD Model

Alternative Products

Description

The Panasonic Electronic Components EEU-TP series aluminum electrolytic capacitors are designed for use in automotive applications. Panasonic Electronic Components

Application: Automotive
Capacitance: 100 µF
Voltage Rating: 35 V
Tolerance: ±20%
Ripple Current (Low Frequency): 377 mA @ 120 Hz
Ripple Current (High Frequency): 500 mA @ 100 kHz
Lifetime: 3000 hours @ 125°C
Polarization: Polarized
Package/Case: Radial, Can
Height: 0.551" (14.00mm)
Diameter: 0.394" (10.00mm)
Lead Spacing: 0.197" (5.00mm)
Mounting Type: Through-Hole
AEC-Q200: Rated
