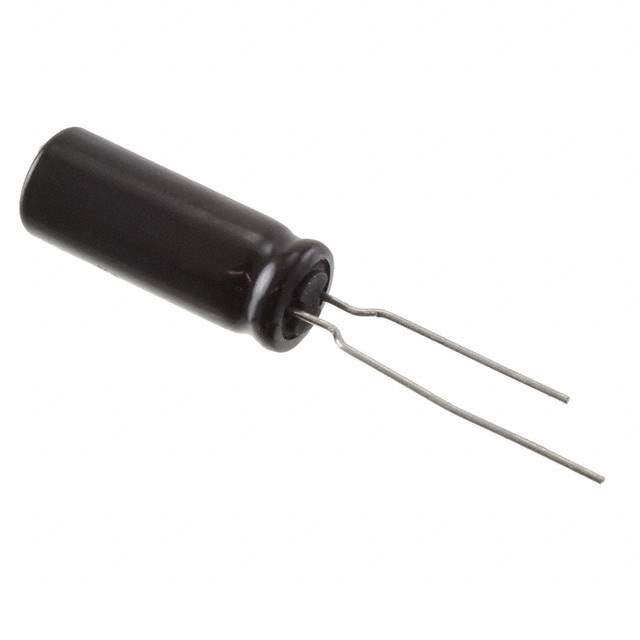

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FS-A
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.05 A @ 120 Hz
Ripple Current @ High Frequency 1.5 A @ 100 kHz
Impedance 33 mOhms
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.004" (25.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Base Product Number EEU-FS
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P123402TR-ND,P123402,P123402TR,EEUFS1J331L
Standard Package 200
Win Source Part Number 1059798-EEU-FS1J331L
Ultra Librarian 3D Model Ultra Librarian EEU-FS1J331L CAD Model

Description

The Panasonic FS-A aluminum electrolytic capacitor is a general-purpose component designed for a variety of applications.

  • Capacitance: 330 µF
  • Tolerance: ±20%
  • Voltage Rating: 63V
  • Package: radial, can
  • ESR (Equivalent Series Resistance): not specified
  • Lead Spacing: 0.197" (5.00mm)
  • Mounting: through-hole
  • Operating Temperature Range: -40°C to 105°C
  • Lifetime: 10,000 hours @ 105°C
