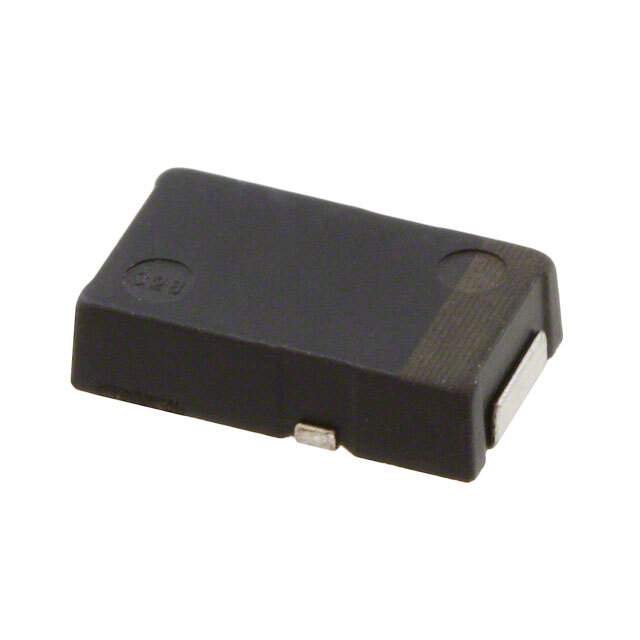

Same model may have multiple batches, images only for reference.

EEF-LS0E181R

Name: EEF-LS0E181R
Brand: Panasonic
SKU: 1013875
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEF-LS0E181R
Manufacturer	Panasonic
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 180UF 20% 2.5V SMD / 180 µF 2.5 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 6mOhm 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum - Polymer Capacitors
Mfr	Panasonic Electronic Components
Series	SP-Cap LS
Package	Tape & Reel (TR)
Type	Polymer
Capacitance	180 µF
Tolerance	±20%
Voltage - Rated	2.5 V
ESR (Equivalent Series Resistance)	6mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Applications	General Purpose
Ripple Current @ High Frequency	7.5 A @ 100 kHz
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.047" (1.20mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD (SMT)
Package / Case	2917 (7343 Metric)
Base Product Number	EEF-LS
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEFLS0E181R
Standard Package	3,500
Win Source Part Number	1013875-EEF-LS0E181R
Ultra Librarian 3D Model	Ultra Librarian EEF-LS0E181R CAD Model

Description

The Panasonic Electronic Components SP-Cap LS is a polymer capacitor with a capacitance of 180 µF and a voltage rating of 2.5 V.

Capacitance: 180 µF
Voltage Rating: 2.5 V
ESR: 6mOhm
Ripple Current: 7.5 A @ 100 kHz
Standard Package: 3,500
Mounting: SMD (SMT)
Applications: General purpose
Lifetime: 2000 hours @ 105°C
Dimensions: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height: 0.047" (1.20mm)
