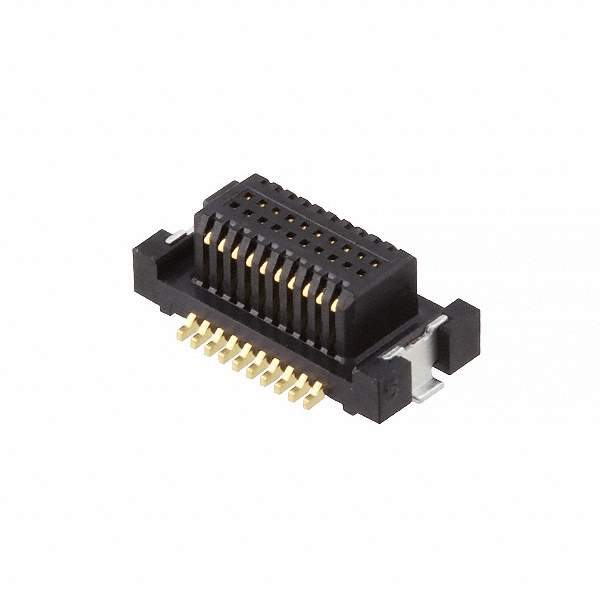

1565357-9 Real Image
Same model may have multiple batches, images only for reference.

1565357-9

Part No 1565357-9
Manufacturer TE Connectivity
Catalog Rectangular - Board to Board Connectors
Description CONN RCPT 20POS SMD GOLD  /  20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr TE Connectivity AMP Connectors
Series Fine Mate
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 4mm, 4.5mm, 5.5mm, 6mm
Height Above Board 0.126" (3.20mm)
Base Product Number 1565357
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A120810TR,1565357-9-ND,-1565357-9-SI,A120810CT
Standard Package 1,000
Win Source Part Number 1203813-1565357-9
Ultra Librarian 3D Model Ultra Librarian 1565357-9 CAD Model

Description

The 1565357-9 is a rectangular connector array with edge type, mezzanine (board to board) features from TE Connectivity AMP Connectors.

  • Contact Finish: Gold
  • Contact Type: Receptacle Center Strip
  • Height Above Board: 3.20mm
  • Mated Stacking Height: 4mm, 4.5mm, 5.5mm, and 6mm
  • Number of Positions: 20
  • Number of Rows: 2
  • Package: Tape & Reel (TR), Cut Tape (CT)
  • Pitch: 0.020" (0.50mm)
  • Series: Fine Mate
  • Solder Retention: Yes
  • Type: SMD
