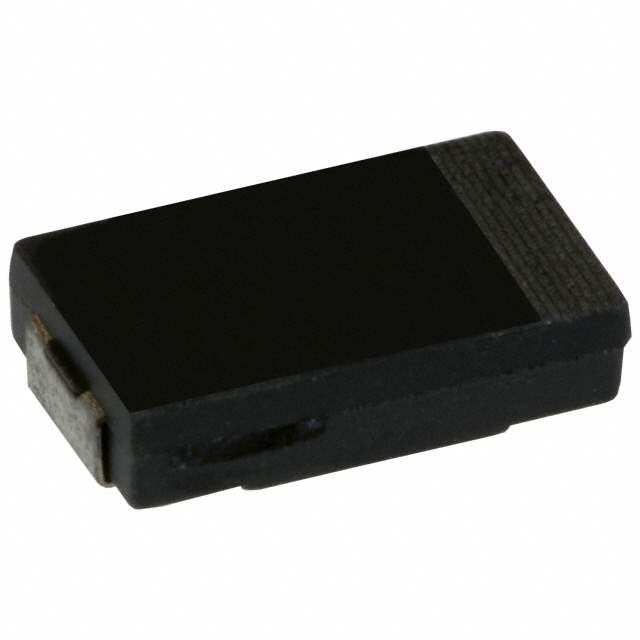

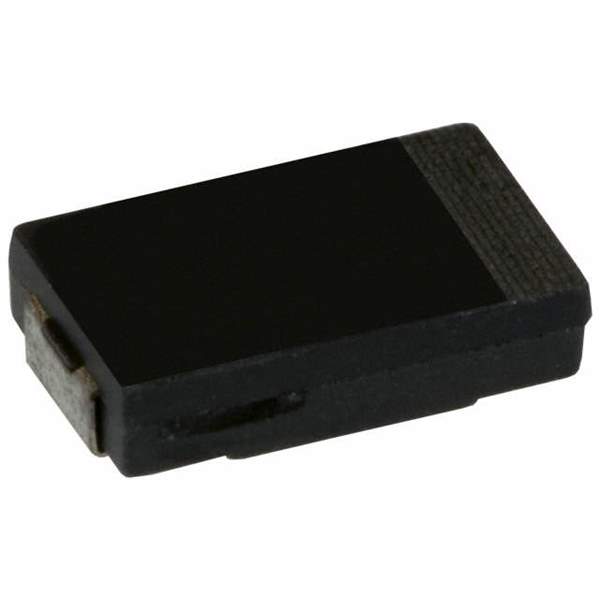

EEF-CD1B4R7R Real Image
Same model may have multiple batches, images only for reference.

EEF-CD1B4R7R

Part No EEF-CD1B4R7R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 4.7UF 12.5V SMD
Datasheet
EEF-CD1B4R7R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Type Polymer
Capacitance 4.7μF
Tolerance ±20%
Voltage Rating 12.5V
ESR 80 mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C to 105°C
Applications General Purpose
Ripple Current - High Frequency 1A @ 100kHz
Height - Seated (Max) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Dimension 2917 (7343 Metric)
Win Source Part Number 108253-EEF-CD1B4R7R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EEF-CD1B4R7R CAD Model

Description

The EEF-CD1B4R7R strikes a balance between efficiency and practicality, enabling it to be used in a broad spectrum of electronic applications. Its state-of-the-art design ensures it meets and exceeds industry standards.

Applications

  • Digital Electronics
  • Robotics
  • Audio Equipment
  • Smart Home Devices

Features and Benefits

  • Enhanced energy efficiency
  • High-density performance
  • Reliable under high-stress conditions
  • Compact footprint for easy integration

The EEF-CD1B4R7R offers a unique combination of durability and superior performance, making it an essential component for forward-thinking electronic projects.
