Same model may have multiple batches, images only for reference.

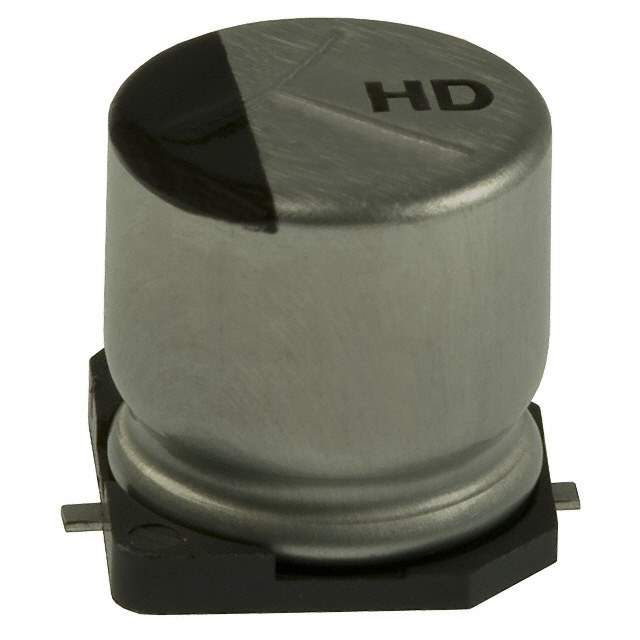

EEEHD1C100AR Real Image
Same model may have multiple batches, images only for reference.

EEEHD1C100AR

Part No EEEHD1C100AR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description Aluminum Electrolytic Capacitor, 10UF, 16V, 20%, SMD, Full Reel
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 10 µF
Mounting SMD (SMT)
Case / Package Radial
Contact Plating Tin
Diameter 4 mm
Dissipation Factor 0.2 %
ESR (Equivalent Series Resistance) 12 Ω
Features General Purpose
Height 5.8 mm
Height - Seated (Max) 5.7912 mm
Impedance 12 Ω
Lead Free Yes
Lead Pitch 1 mm
Leakage Current 3 µA
Length 5.5 mm
Life (Hours) 5000 hours
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount PCB, Surface Mount
Number of Pins 2
Packaging Cut Tape (CT)
Polarity Polar
Radiation Hardening No
REACH SVHC No SVHC
Ripple Current 28 mA
Ripple Current (AC) 28 mA
RoHS Compliant
Termination SMD/SMT
Tolerance 20 %
Voltage 16 V
Voltage Rating 16 V
Voltage Rating (DC) 16 V
Win Source Part Number 1008568-EEEHD1C100AR
Categories Aluminum Capacitors
Manufacturer Panasonic
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian EEEHD1C100AR CAD Model

Description

The Panasonic Eeehd1c100ar is an aluminum capacitor manufactured by Panasonic.

  • Capacitance: 10μF
  • Voltage Rating: 16V
  • Tolerance: 20%
  • Impedance: 12Ω
  • Ripple Current: 28mA
  • Dissipation Factor: 0.2%
  • Leakage Current: 3μA
  • Height: 5.8mm
  • Diameter: 4mm
  • Mounting: PCB Surface Mount
  • Operating Temperature: -40°C to 105°C
  • Life: 5000 hours
  • Supply Status: Short Supply
