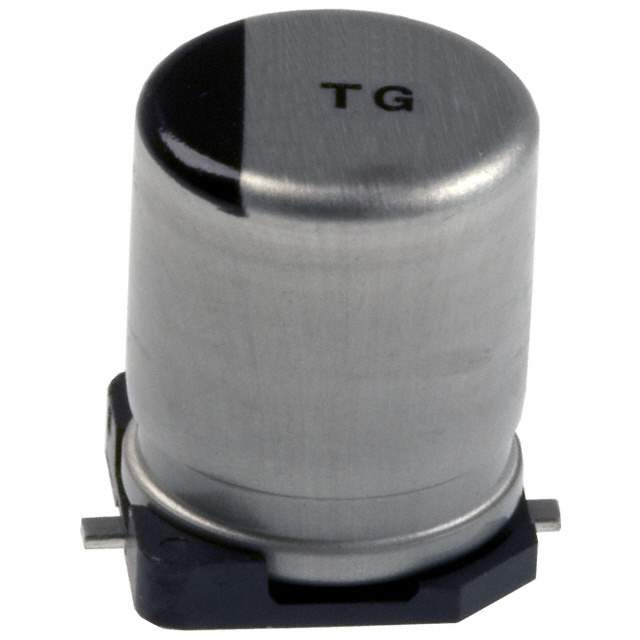

Same model may have multiple batches, images only for reference.

EEE-TG1J470UP

Name: EEE-TG1J470UP
Brand: Panasonic
SKU: 1037917
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EEE-TG1J470UP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 63V SMD / 47 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1Ohm @ 100kHz 2000 Hrs @ 125°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	TG
Package	Tape & Reel
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	63 V
ESR (Equivalent Series Resistance)	1Ohm @ 100kHz
Lifetime @ Temp.	2000 Hrs @ 125°C
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	65 mA @ 120 Hz
Ripple Current @ High Frequency	100 mA @ 100 kHz
Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.402" (10.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting	SMD (SMT)
Package / Case	Radial, Can - SMD
Base Product Number	EEE-TG
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	EEETG1J470UP,PCE4093CT,PCE4093DKR,PCE4093TR
Standard Package	500
Win Source Part Number	1037917-EEE-TG1J470UP
Ultra Librarian 3D Model	Ultra Librarian EEE-TG1J470UP CAD Model

Description

The Panasonic Electronic Components EEE-TG1J470UP is an aluminum electrolytic capacitor that belongs to the category of capacitors.

Capacitance: 47 microfarads
Voltage Rating: 63 volts
AEC-Q200: AEC-Q200 rated
Application: Automotive applications
MSL Level: 1 (unlimited)
Lifetime: 2000 hours @ 125 degrees Celsius
