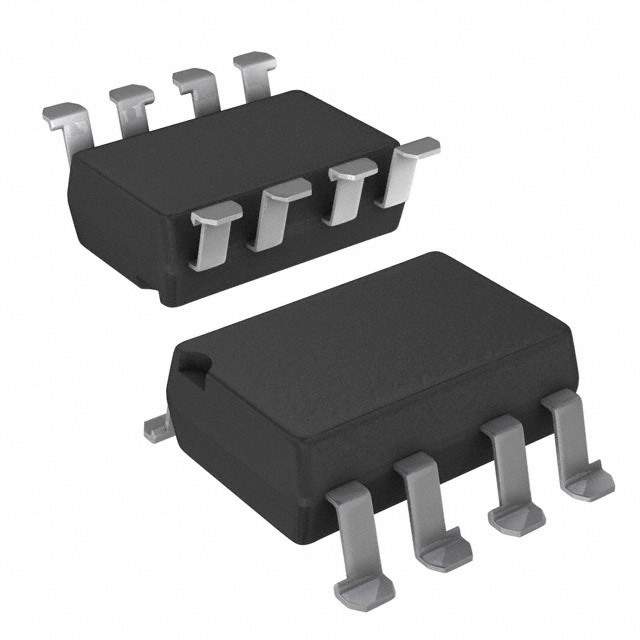

LH1505AACTR Real Image
Same model may have multiple batches, images only for reference.

LH1505AACTR

Part No LH1505AACTR
Manufacturer Vishay
Catalog Solid State Relays
Description Dual 1 Form A Solid State Relay
Datasheet
LH1505AACTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay Semiconductor Opto Division
Series LH1505
Packaging Reel - TR
Circuit DPST (2 Form A)
Output Type AC, DC
On-State Resistance (Maximum) 15 Ohm
Load Current 120mA
Voltage - Input 1.26VDC
Voltage - Load 0 ~ 250 V
Mounting SMD
Termination Style Gull Wing
Package 8-SMD (0.300", 7.62mm)
Manufacturer Package 8-SMD
Relay Type Relay
Win Source Part Number 1196367-LH1505AACTR
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LH1505AACTR CAD Model

Description

The LH1505AACTR is an electronic component manufactured by Vishay Semiconductor Opto Division.

  • Product Category: relays
  • Status: balance
  • Usage: widely used in the electronics industry due to its high-quality performance and reliability.
  • Recommendation: a highly recommended product for anyone looking for a reliable and high-performance electronic component.
  • Load Current: 120mA
