Same model may have multiple batches, images only for reference.

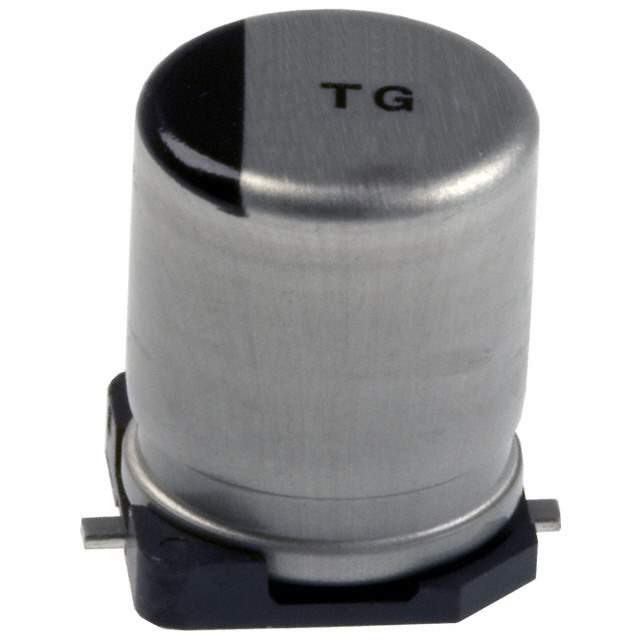

EEE-TG1H470UP Real Image
Same model may have multiple batches, images only for reference.

EEE-TG1H470UP

Part No EEE-TG1H470UP
Manufacturer Panasonic
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series TG
Package Tape & Reel
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 750mOhm @ 100kHz
Lifetime @ Temp. 2000 Hrs @ 125°C
Temperature Range - Operating -40°C ~ 125°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 86.45 mA @ 120 Hz
Ripple Current @ High Frequency 133 mA @ 100 kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-TG
Other Names PCE4080DKR,EEETG1H470UP,PCE4080CT,PCE4080TR
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307300-EEE-TG1H470UP
Ultra Librarian 3D Model Ultra Librarian EEE-TG1H470UP CAD Model

Description

The Panasonic Electronic Components TG series aluminum electrolytic capacitor is a high-quality component that has a capacitance of 47µF and a voltage rating of 50V.

  • AEC-Q200 Rated: Yes
  • Tolerance: ±20%
  • ESR: 750mOhm @ 100kHz
  • Package: Radial, can-SMD
  • Packaging: Tape and reel
  • Surface Mount Land Size: 0.327 inches L x 0.327 inches W (8.30mm x 8.30mm)
  • Diameter: 0.315 inches (8.00mm)
  • Height: 0.402 inches (10.20mm)
  • Lifetime: 2000 hours @ 125°C
  • Polarized: Yes
  • Ripple Current @ Low Frequency: 86.45mA @ 120Hz
  • Ripple Current @ High Frequency: 133mA @ 100kHz
  • RoHS compliant: Yes
  • REACH: Unaffected
