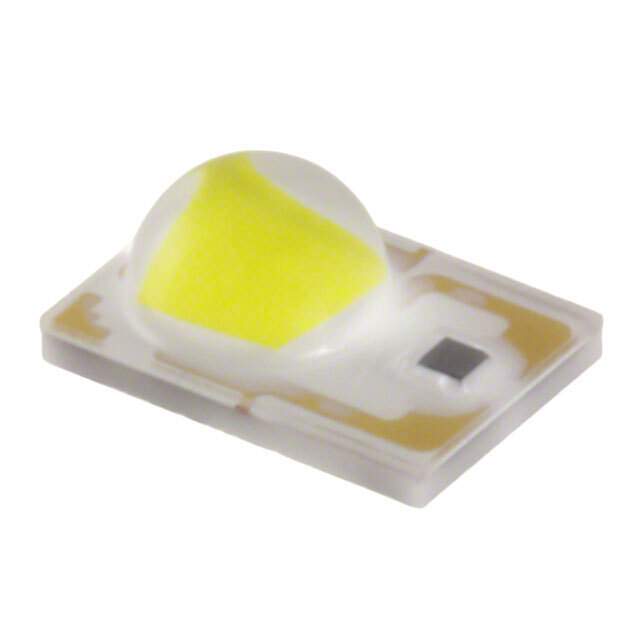

LXML-PX02-0000 Real Image
Same model may have multiple batches, images only for reference.

LXML-PX02-0000

Part No LXML-PX02-0000
Manufacturer Lumileds
Catalog LED Lighting - Color
Description LED LUXEON REBEL LIME 568NM SMD  /  LED Lighting Color series Lime 568nm (566nm ~ 569nm) 1812 (4532 Metric)
Datasheet
LXML-PX02-0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr Lumileds
Series LUXEON Rebel Color ES
Package Tape & Reel
Color Lime
Wavelength 568nm (566nm ~ 569nm)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.75V
Lumens/Watt @ Current - Test 191 lm/W
Current - Max 1A
Luminous Flux @ Current/Temperature 184lm (Typ)
Temperature - Test 85°C
Viewing Angle 125°
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric)
Supplier Device Package SMD
Dimension 0.177" L x 0.120" W (4.49mm x 3.05mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 6°C/W
Base Product Number LXML-PX02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1185-6,LXML-PX02-0000-ND,1416-1185-1,1416-1185-2
Standard Package 1,000
Win Source Part Number 1033101-LXML-PX02-0000
Ultra Librarian 3D Model Ultra Librarian LXML-PX02-0000 CAD Model

Description

The Lumileds 1033101-LXML-PX02-0000 is a surface-mount LED that belongs to the LUXEON Rebel Color ES series.

  • Light Color: Lime
  • Wavelength: 568nm
  • Forward Voltage: 2.75V
  • Maximum Current: 1A
  • Viewing Angle: 125 degrees
  • Luminous Flux: 184lm (typical)
  • Package: 1812 (4532 metric)
  • Dimensions: 0.177 inches (4.49mm) in length and 0.120 inches (3.05mm) in width
  • Seated Height: 0.083 inches (2.10mm)
  • Popularity: Medium-popularity
  • Supply and Demand Status: Limited supply and demand
