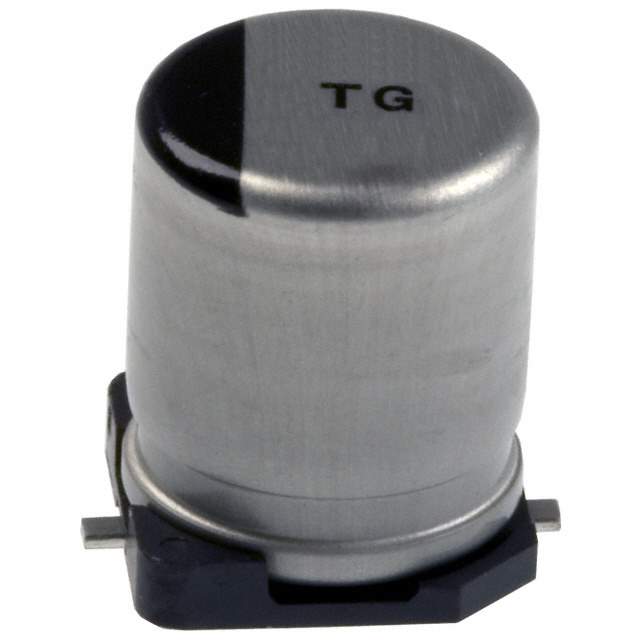

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series Automotive, AEC-Q200, TG
Part Status Obsolete(EOL)
Capacitance 330μF
Tolerance ±20%
Voltage Rating 16V
ESR (Equivalent Series Resistance) 120 mOhm @ 100kHz
Lifetime @ Temp. 1000 Hrs @ 125°C
Operating Temperature Range -40°C ~ 125°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 520mA @ 120Hz
Dimension 0.492" Dia (12.50mm)
Height - Seated (Maximum) 0.532" (13.50mm)
Surface Mount Land Size 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 763535-EEE-TG1C331Q
Popularity Medium
Supply and Demand Status Limited
Family Name TG
Introduction Date July 04, 2004
Country of Origin Japan
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EEE-TG1C331Q CAD Model

Description

The Panasonic Electronic Components 763535-EEE-TG1C331Q is a reliable and efficient solution for managing electrical components.

  • Series: Automotive, AEC-Q200, TG
  • Temperature Range: -40°C ~ 125°C
  • Package: Radial, Can-SMD
  • Voltage Rating: 16V
  • Capacitance: 330μF
  • Tolerance: ±20%
  • ESR: 120 mOhm @ 100kHz
  • Lifetime at Temperature: 1000 Hrs @ 125°C
  • Surface Mount Land Size: 0.531" L x 0.531" W (13.50mm x 13.50mm)
  • Polarization: Polarized
  • Dimension: 0.492" Dia (12.50mm)
  • Ripple Current (Low Frequency): 520mA @ 120Hz
  • Height Seated (Maximum): 0.532" (13.50mm)
  • Alternative Parts (Cross-Reference): UWG1C331MNR1GS, B41141A4337M000, UCD1C331MCL6GS
  • Manufacturer: Panasonic Electronic Components
  • Win Source Part Number: 763535-EEE-TG1C331Q
