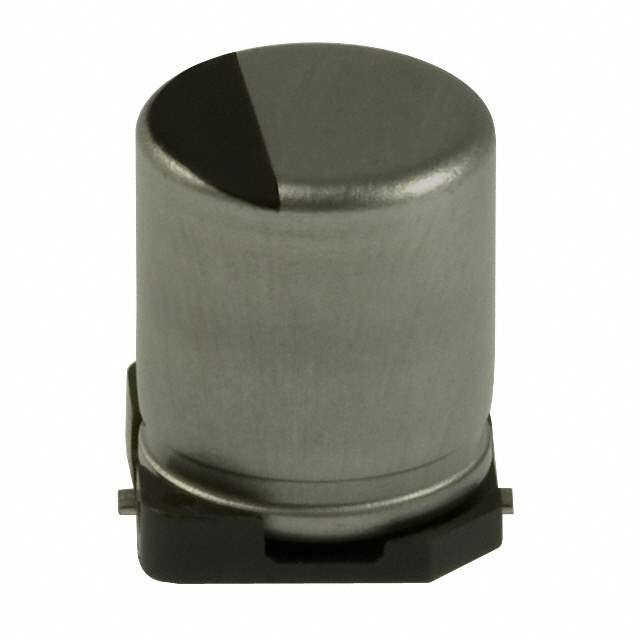

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 100μF
Tolerance ±20%
Voltage Rating 35V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C to 85°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 132mA @ 120Hz
Ripple Current - High Frequency 224.4mA @ 10kHz
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 140479-EEE-1VA101XP
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive
Ultra Librarian 3D Model Ultra Librarian EEE-1VA101XP CAD Model

Description

EEE-1VA101XP Capacitor

The EEE-1VA101XP is a high-performance capacitor known for its exceptional reliability and efficiency. Designed to meet the demands of modern electronic circuits, this capacitor is ideal for applications where energy efficiency and compact size are of utmost importance.

  • 10μF capacitance
  • Low ESR
  • Long lifespan

Applications & Projects

  • Consumer electronics
  • Industrial automation
  • Medical equipment

Features & Benefits

  • High energy efficiency: Reduces power consumption in various electronic devices.
  • Compact design: Fits easily into small circuit boards, saving space for other components.
  • Durable and reliable: Ensures long-term performance and stability.

Additional Details: With its optimized design, the EEE-1VA101XP can handle a range of voltages, making it versatile for different applications.
