Same model may have multiple batches, images only for reference.

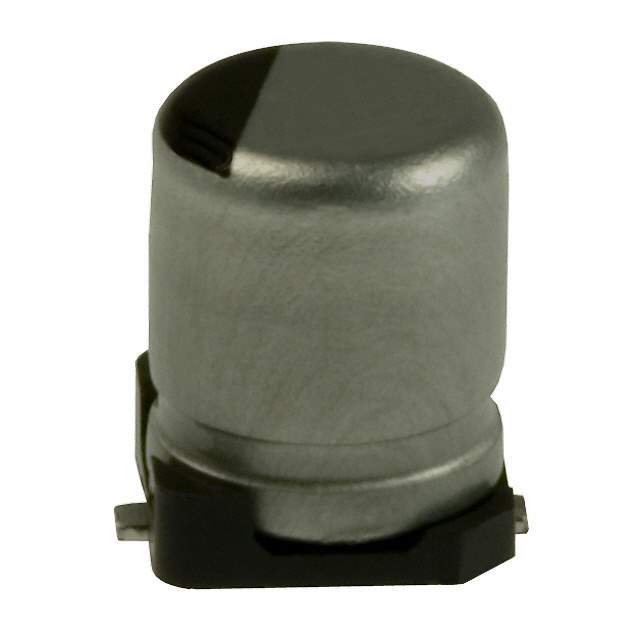

EEE-1CA100AR Real Image
Same model may have multiple batches, images only for reference.

EEE-1CA100AR

Part No EEE-1CA100AR
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 16V SMD
Datasheet
EEE-1CA100AR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series Automotive, AEC-Q200, S
Capacitance 10μF
Tolerance ±20%
Voltage Rating 16V
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 28mA @ 120Hz
Ripple Current - High Frequency 47.6mA @ 10kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 763672-EEE-1CA100AR
Popularity Medium
Supply and Demand Status Limited
Family Name S
Introduction Date July 27, 2008
ECCN EAR99
Country of Origin Japan, Malaysia
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian EEE-1CA100AR CAD Model

Description

The Panasonic Electronic Components EEE-1CA100AR is a high-quality and reliable capacitor.

  • Series: S
  • Applications: Automotive, AEC-Q200, General
  • Capacitance: 10μF
  • Voltage Rating: 16V
  • Operating Temperature: -40°C to 85°C
  • Tolerance: ±20%
  • Package: Radial, Can - SMD
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
