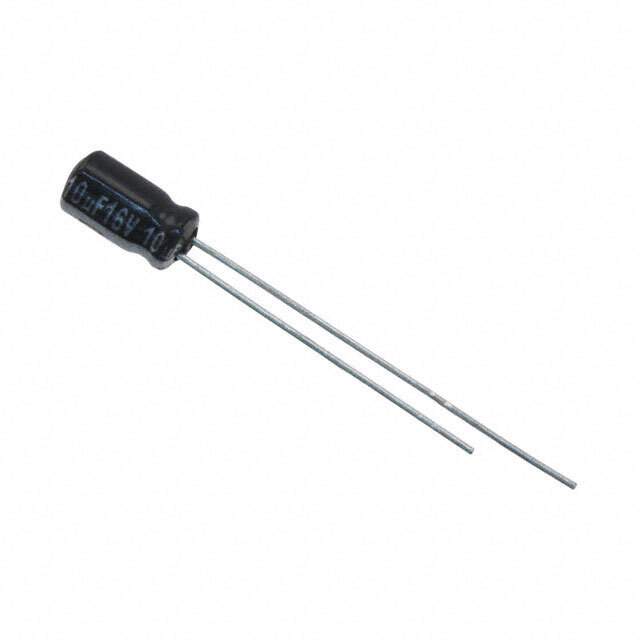

Same model may have multiple batches, images only for reference.

EEA-GA1E150B

Name: EEA-GA1E150B
Brand: Panasonic
SKU: 764078
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEA-GA1E150B
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 15UF 20% 25V RADIAL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Panasonic Electronic Components
Series	GA
Capacitance	15μF
Tolerance	±20%
Voltage Rating	25V
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	45mA @ 120Hz
Ripple Current - High Frequency	69.75mA @ 100kHz
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Maximum)	0.276" (7.00mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	764078-EEA-GA1E150B
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian EEA-GA1E150B CAD Model

Description

The Panasonic Electronic Components EEA-GA1E150B is a limited supply electronic component from Panasonic Electronic Components.

Capacitance: 15μF
Tolerance: ±20%
Ripple Current (Low Frequency): 45mA @ 120Hz
Ripple Current (High Frequency): 69.75mA @ 100kHz
Lifetime at Temp: 1000 Hrs @ 105°C
Package: Radial, Can
Mounting Style: Through Hole
