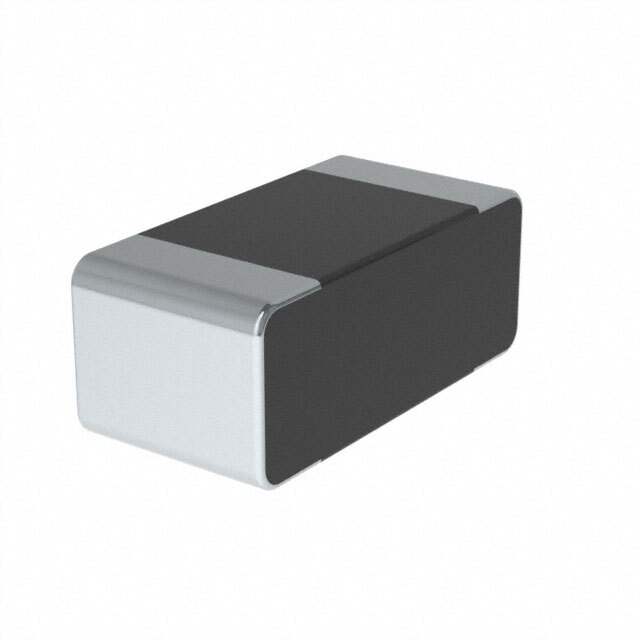

ECW-U1122JX5 Real Image
Same model may have multiple batches, images only for reference.

ECW-U1122JX5

Part No ECW-U1122JX5
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 1200PF 5% 100VDC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 1200pF
Tolerance ±5%
Voltage Rating - DC 100V
Temperature Range - Operating -55°C to 105°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.051" (1.30mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000990-ECW-U1122JX5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECW-U1122JX5 CAD Model

Description

ECW-U1122JX5 - High Capacitance Film Capacitor

The ECW-U1122JX5 combines high capacitance with durability, making it an excellent choice for power-intensive applications.

  • Applications:
    • Power line filters
    • Energy storage circuits
    • Motor drives
  • Features and Benefits:
    • High dielectric strength
    • Reduced energy loss
    • Optimized for low ESR
  • Additional Details:
    • Voltage rating: 400V
    • Capacitance: 2.2μF
    • Frequency stability: Excellent
