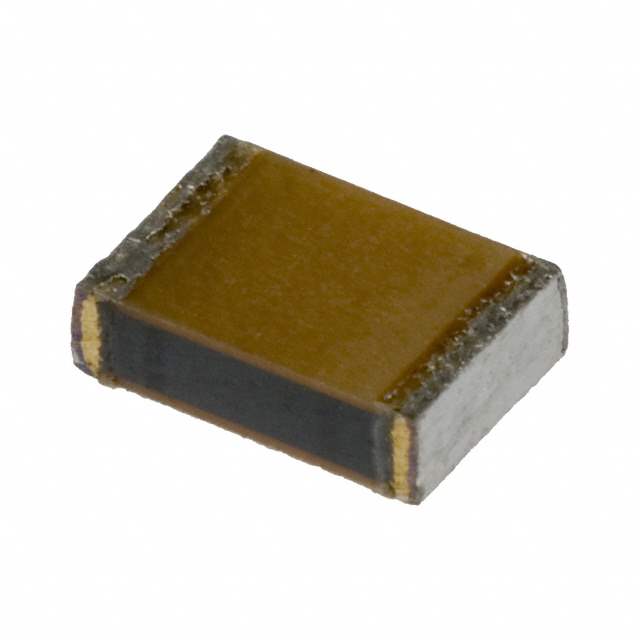

ECH-U1H563JC9 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 0.056μF
Tolerance ±5%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000934-ECH-U1H563JC9
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ECH-U1H563JC9 CAD Model

Description

Overview

The ECH-U1H563JC9 capacitor combines quality construction with advanced features to cater to diverse electronic needs. It belongs to the reliable ECH series, known for performance stability.

Features and Benefits

  • Stable Capacitance: Ensures minimal deviation over time and use.
  • Compact Sizing: Facilitates easy integration into small electronic devices.
  • Durable Construction: Long-lasting material ensures fewer replacements.

Applications

  • Audio-Visual Equipment
  • Power Supply Systems
  • Networking Devices
  • Home Appliances

With a blend of compact form and high reliability, the ECH-U1H563JC9 is suitable for a wide range of high-performance applications.
