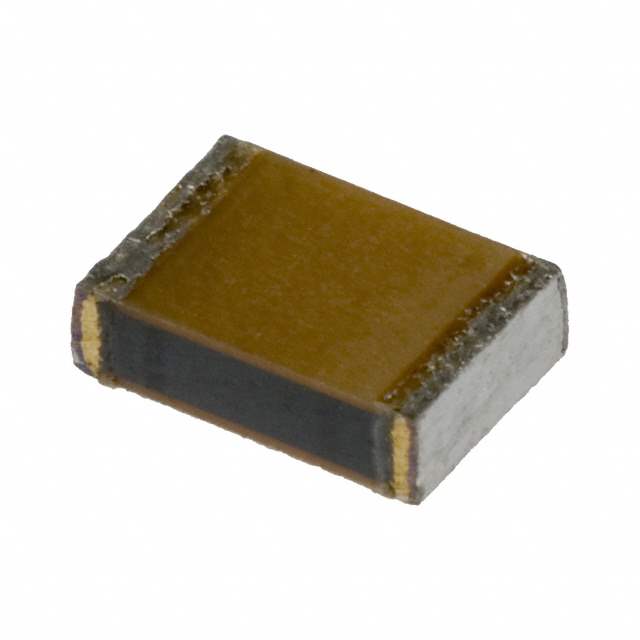

ECH-U1H563GC9 Real Image
Same model may have multiple batches, images only for reference.

ECH-U1H563GC9

Part No ECH-U1H563GC9
Manufacturer Panasonic
Catalog Film Capacitors
Description CAP FILM 0.056UF 2% 50VDC 1913
Datasheet
ECH-U1H563GC9 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Capacitance 0.056μF
Tolerance ±2%
Voltage Rating - DC 50V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.189" L x 0.130" W (4.80mm x 3.30mm)
Height - Seated (Max) 0.087" (2.20mm)
Termination Solder Pads
Applications General Purpose
Win Source Part Number 000933-ECH-U1H563GC9
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ECH-U1H563GC9 CAD Model

Description

Features and Benefits:

  • Exceptional tolerance to high frequencies
  • Highly efficient energy storage capabilities
  • Miniature size ideal for handheld devices

Applications and Projects:

  • Signal coupling and suppression in communication gear
  • Energy harvesting applications in IoT devices
  • Output filtering in switching power supplies

The ECH-U1H563GC9 offers unmatched performance in modern circuit designs, catering to a diverse range of innovative electronic projects.
